Mooer Macro Power S8 Professional Effects Power Supply ( S-8 / s8 )

Mooer Macro Power S8 Professional Effects Power Supplies Guitar Effect Pedal Power Supply Station

Macro Power Power S8 is a pedal power supply with eight output power supply jacks, equipped with vary functions input voltage switch independent output power jacks over-current protection and adjustable output. It was designed to meet users’ needs and offer convenient and pure experiences.

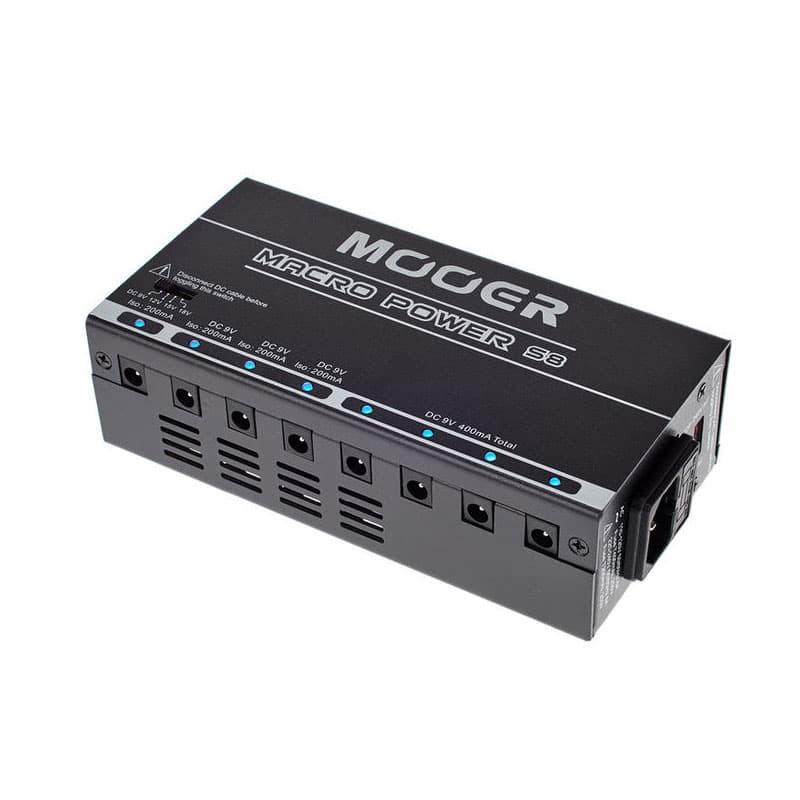

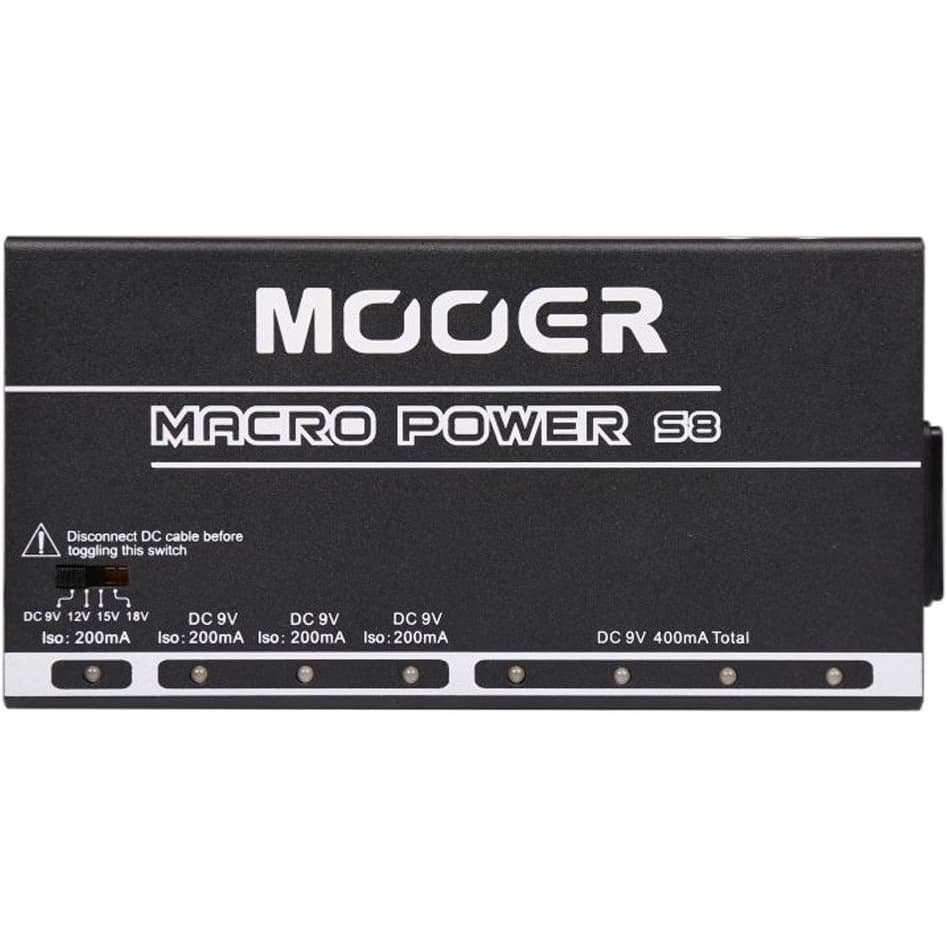

Output power jacks: From left to right

One adjustable voltage output power jack, choose output voltage from 9V,12V,15V,18V. The output current is 200mA.

Three independent output power jacks, each lines output voltage is 9V, and the output current is 200mA.

Four parallel output power jacks, each lines output voltage is 9V. 400mA shared output across these four power jacks.

Mooer Macro Power S8 Professional Effect Power Supply :

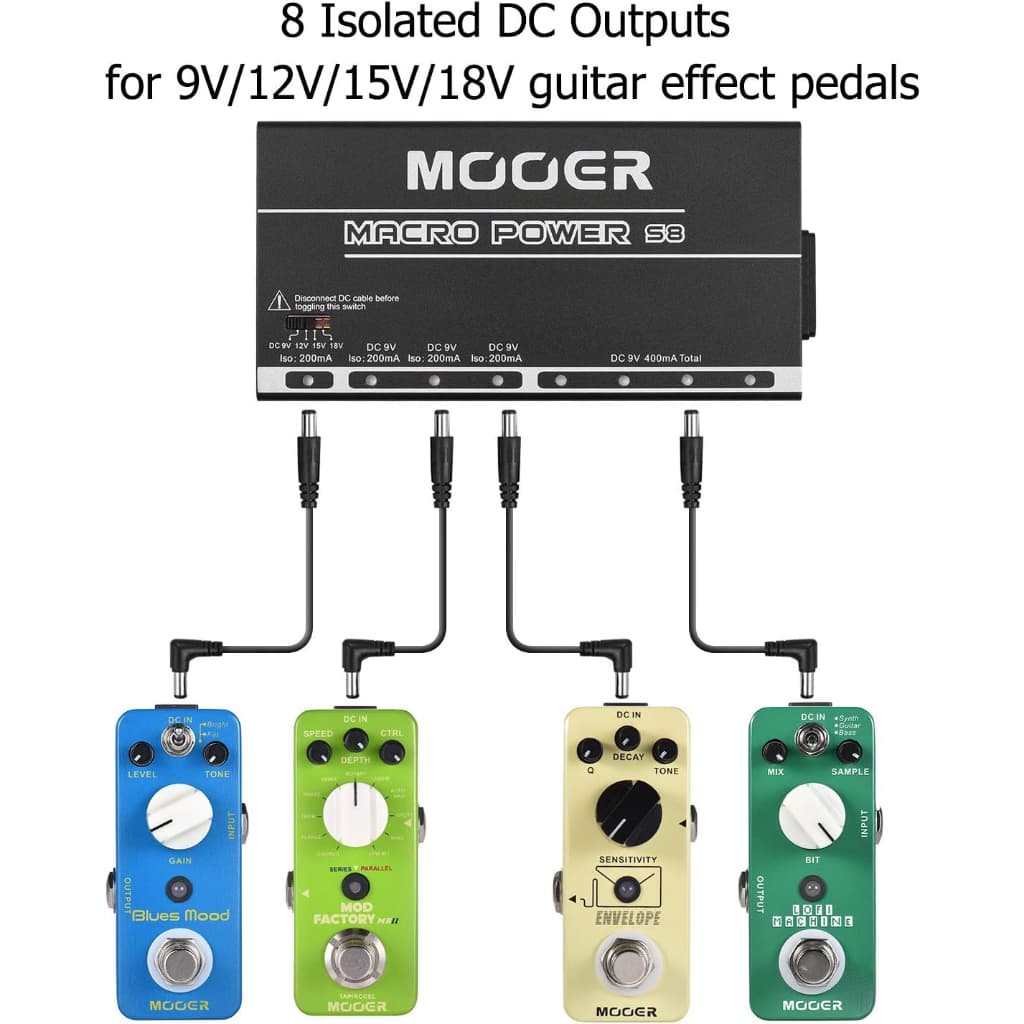

• Independent power supply jacks: Eight power supply jacks. Five of them are function completely independently, which ensures no interference with each other. When one of the power supplies is down, other output lines can still work independently.
• Adjustable output power jacks: The first output power jack can choose output voltage from 9V, 12V, 15V, 18V, which could satisfy the needs of different pedals.
• LED light indicates the status of power supply: Eight blue LED lights indicate the power supply status. Precise power supply status can always be seen clearly.
• Over-current protection function: Every independent output power supply line has the over-current protection function, which could avoid the situation that the pedal power is higher than the output of the power supply. When you connect pedal with power supply but the LED light is not on, you should check out if the pedal power is higher than the output power supply.

SPECIFICATIONS

• Power supply: 230V (220V-240) OR 115V (110V-120V) AC
• Output voltage: 4 independent 9V output power lines. One adjustable output power line (9V, 12V, 15V, 18V) (center minus plug)
• Current Draw: Four Output lines, each one outputs 200mA independently. The other four output lines cannot exceed 400mA output in total.
• Dimensions: 165mm (D) × 83mm (W) × 52mm (H)
