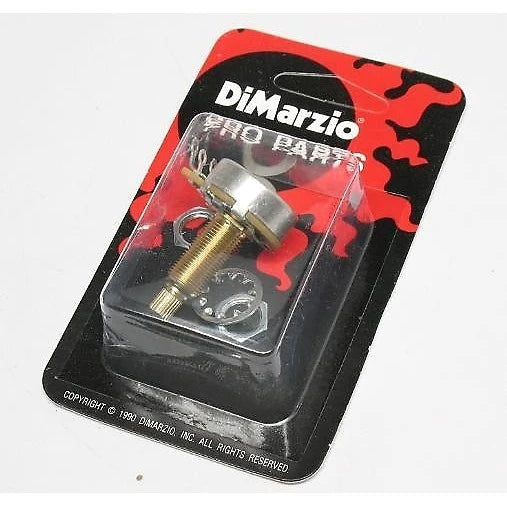

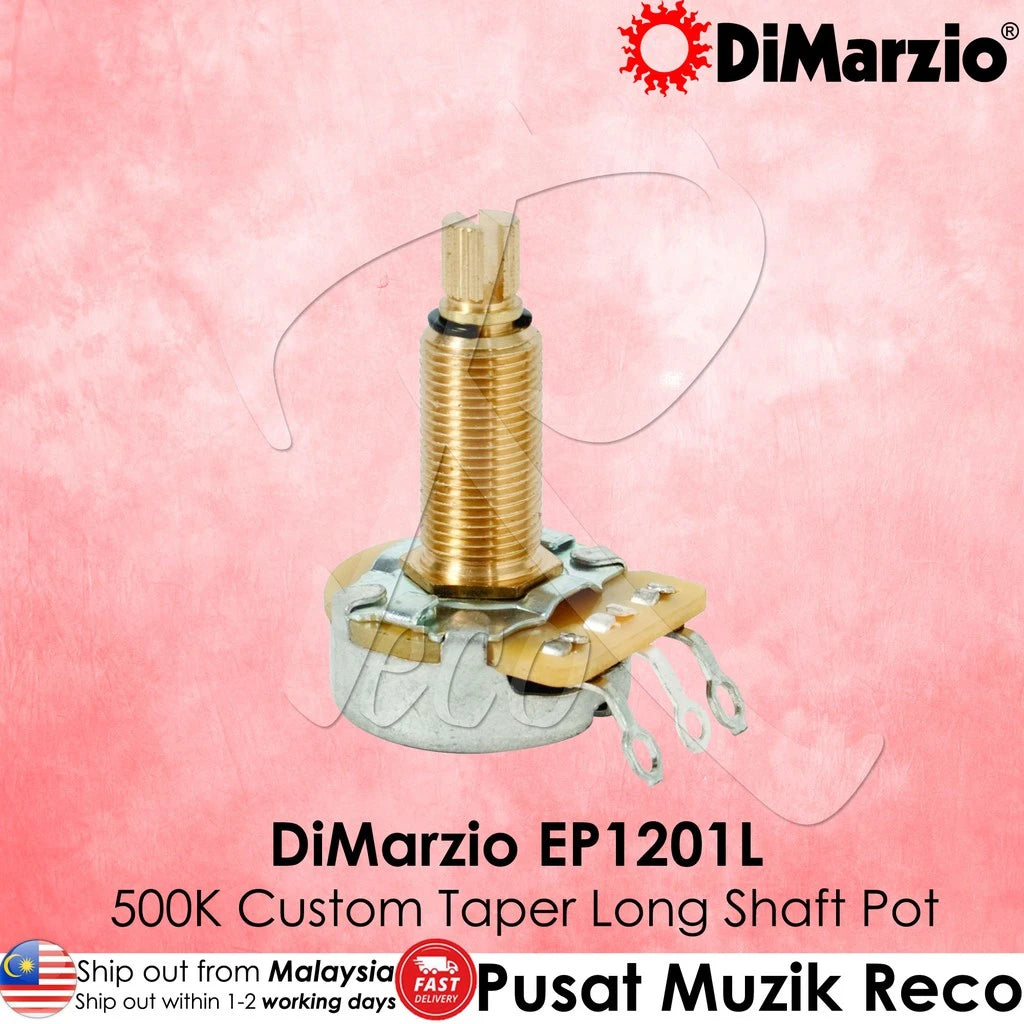

DiMarzio EP1201L 500K Long-Shaft Custom-Taper Potentiometer
DiMarzio EP1201L 500K Long-Shaft Custom-Taper Potentiometer
Low stock
Couldn't load pickup availability
Free Shipping for West Malaysia on Orders of RM100.00 or More. T&C Apply.
Same Day Delivery For Melaka Area Is Available
Orders Placed Before 12:00 PM Will Be Dispatched The Same Day
Flexible Payment Plans Available On Purchases Over RM1,000 For MAYBANK Cardholders
Shipping & Delivery
Shipping & Delivery
🚚 Peninsular Malaysia: 2–5 business days
🚚 Sabah & Sarawak: 5–10 business days
📦 Orders processed within 1 business day
💳 Tracking number provided upon dispatch
Returns & Warranty
Returns & Warranty
✅ 7-day return policy for unused, unopened items
✅ Items must be in original packaging with receipt
✅ Manufacturer warranty applies to all products
📧 Contact us to initiate a return
⚠️ Strings, picks, harmonicas and drumheads are non-returnable once opened
DiMarzio EP1201L 500K Long-Shaft Custom-Taper Potentiometer
✅ PERFECT FOR — Guitar players, repairers and builders installing a dependable 500K control in a USA-style guitar electronics project. The DiMarzio EP1201L combines a long split shaft with a custom taper, making it a practical replacement for compatible guitars that need extra shaft reach and a secure knob fit.
Why Choose DiMarzio EP1201L 500K Long-Shaft Custom-Taper Potentiometer?
- 🎸 500K Custom-Taper Control — The 500K rating and custom taper give your guitar wiring project a purpose-built control option for compatible pickup and tone circuits.
- 📏 Long Split Shaft — The extended shaft format provides useful reach through thicker tops, pickguards or control plates where a standard shaft may not be enough.
- ⚙️ Machined Brass 24-Tooth Hardware — The 24-tooth, 32-thread design supports a firm, accurately positioned fit with compatible knobs and mounting hardware.
- 🎛️ Made for USA-Style Knobs — Designed for compatible USA-style knobs, including common DiMarzio, Fender and Gibson applications.
- 🔩 Installation Hardware Included — The set includes two nuts, one dress washer and one lock washer, while the custom-plated casing is made for easier soldering during installation.
Specifications
| Specification | Details |
|---|---|
| Brand | DiMarzio |
| Model | EP1201L |
| Product type | 500K long-shaft guitar potentiometer |
| Resistance | 500KΩ |
| Taper | Custom taper |

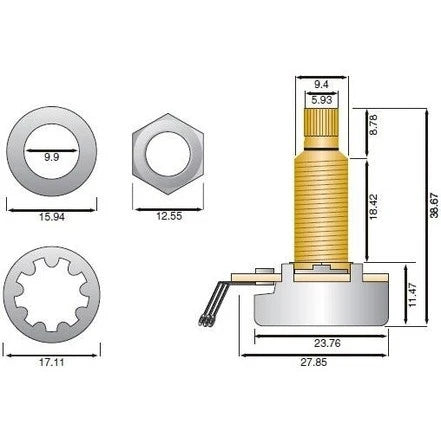

| Shaft | Long split shaft |
| Brass hardware | 24 teeth, 32-thread turn |
| Knob compatibility | Compatible USA-style knobs, including DiMarzio, Fender and Gibson applications |
| Casing | Custom-plated for easier soldering |
| Included | 2 nuts, 1 dress washer and 1 lock washer |
| SKU | EP1201L |
| Product weight | 0.3 kg |
Before ordering: Confirm the shaft length, knob fitment, mounting-hole size and wiring requirements of your guitar before installation.
