Allparts PC-6743 Humbucker Pickup Ring Set for Epiphone — Slanted Side, Flat Bottom

Allparts PC-6743 Humbucker Pickup Ring Set for Epiphone — Slanted Side, Flat Bottom

RM32.00
RM36.00 RM32.00
Sale Sold out
Shipping calculated at checkout.

Low stock

  • Free Delivery For Purchase Above RM100. T&C Apply.
  • Same Day Delivery For Melaka Area Is Available
  • Orders Placed Before 12:00 PM Will Be Dispatched The Same Day
  • Flexible Payment Plans Available On Purchases Over RM1,000 For MAYBANK Cardholders
Color: Black

Shipping & Delivery

🚚 Peninsular Malaysia: 2–5 business days
🚚 Sabah & Sarawak: 5–10 business days
📦 Orders processed within 1 business day
💳 Tracking number provided upon dispatch

Returns & Warranty

✅ 7-day return policy for unused, unopened items
✅ Items must be in original packaging with receipt
✅ Manufacturer warranty applies to all products
📧 Contact us to initiate a return
⚠️ Strings, picks, harmonicas and drumheads are non-returnable once opened

View full details

Allparts PC-6743 Humbucker Pickup Ring Set for Epiphone — Slanted Side, Flat Bottom

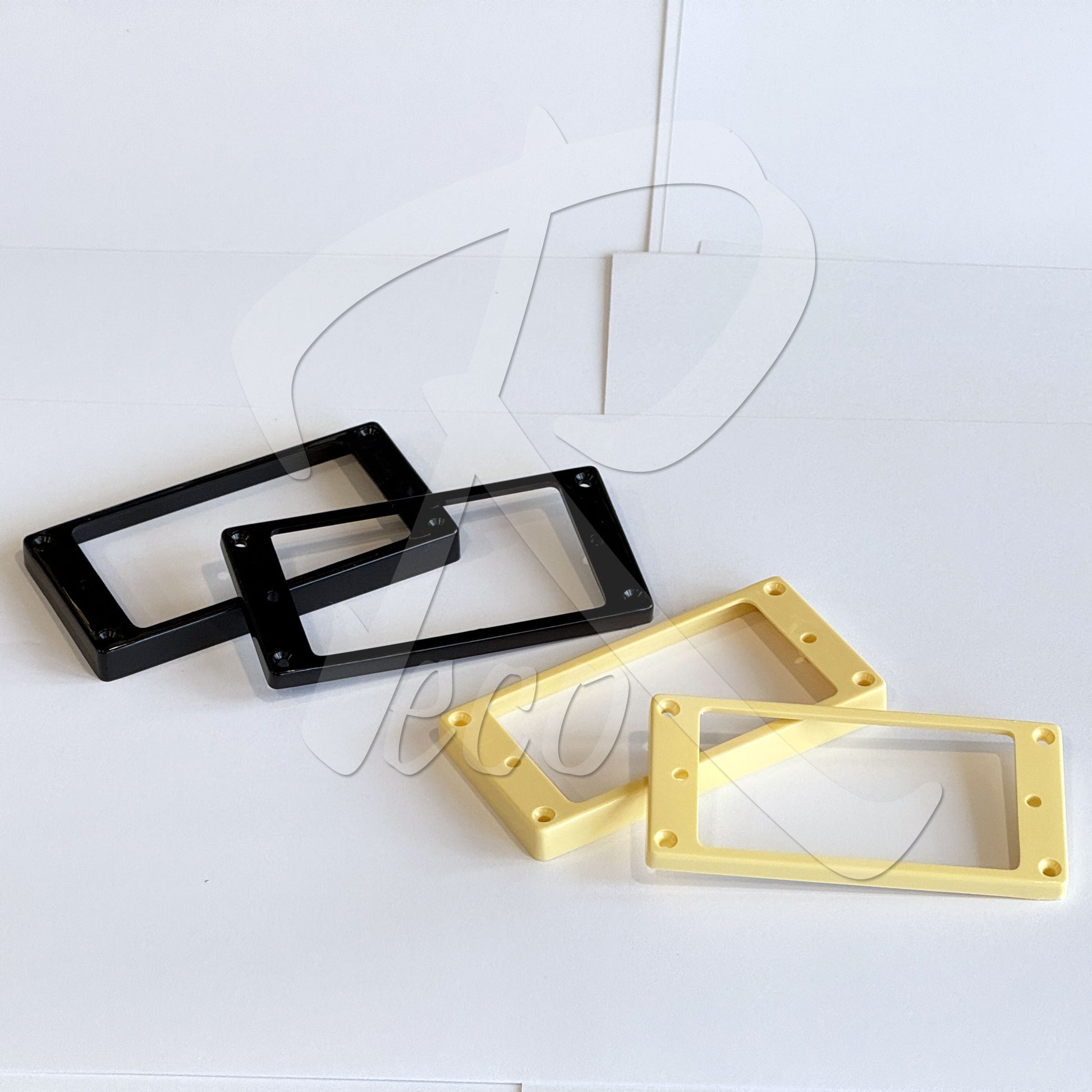

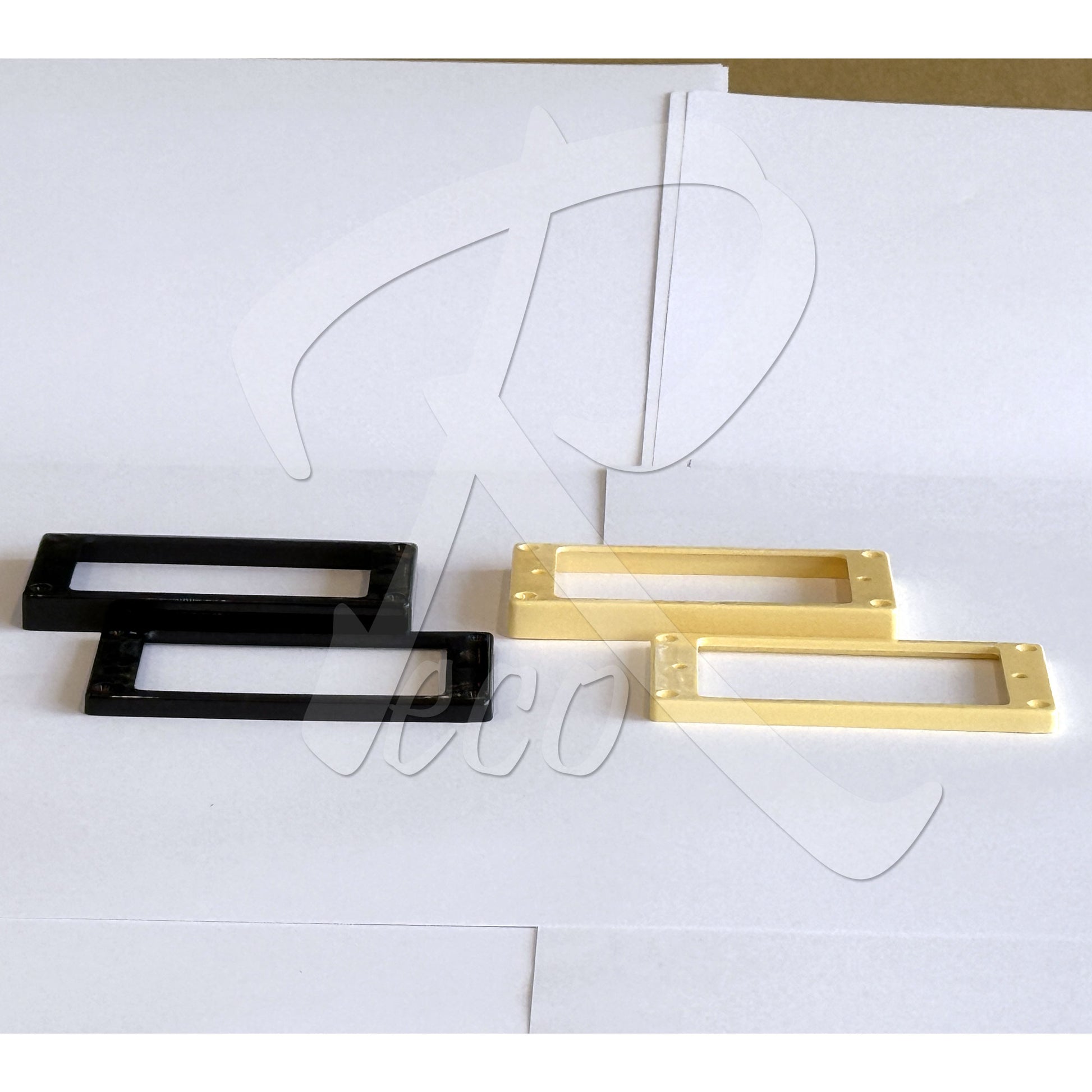

The Allparts PC-6743 is a replacement humbucker pickup ring set designed specifically for Epiphone-style guitars — featuring a slanted side profile and flat bottom to match the Epiphone body routing and top carve. Includes both neck and bridge rings. Available in Black (PC-6743-023) and Cream (PC-6743-028).

Epiphone-Specific Fit — Slanted Side, Flat Bottom

Pickup ring geometry varies between guitar manufacturers — and this is one of the most common sources of fitment problems when replacing pickup rings. Epiphone guitars use a pickup ring with a slanted (angled) side profile and a flat bottom, which differs from the standard Gibson-spec ring that has a straight side and curved (radiused) bottom to match Gibson's carved top. Using a Gibson-spec ring on an Epiphone body will result in poor fitment — the ring will rock or sit unevenly on the flat Epiphone top. The PC-6743 is designed with the correct Epiphone geometry for a flush, stable fit.

Neck & Bridge Set

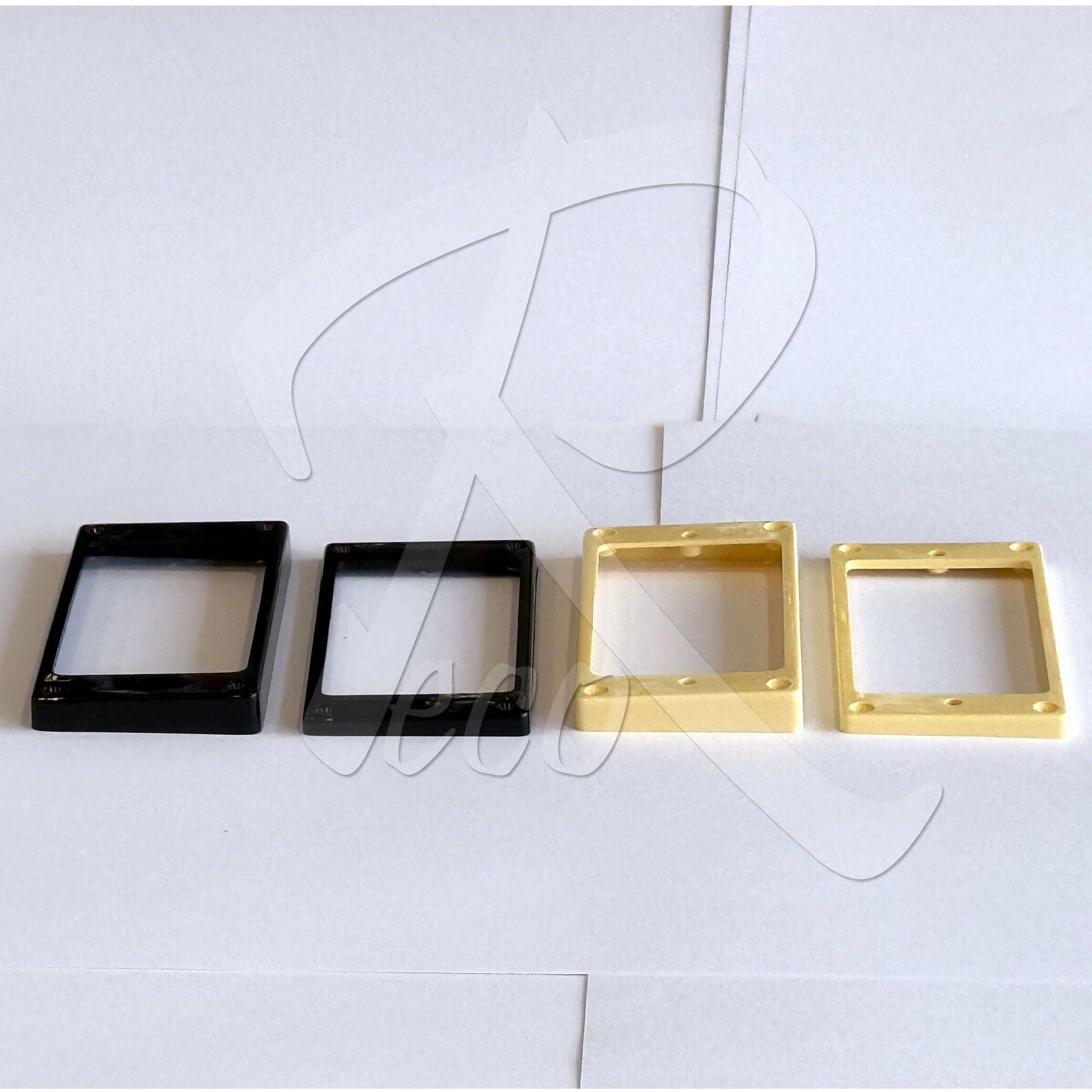

The PC-6743 includes both the neck ring and the bridge ring — the two rings differ slightly in height to account for the different string-to-body distance at each pickup position. Sold as a matched set.

Specifications

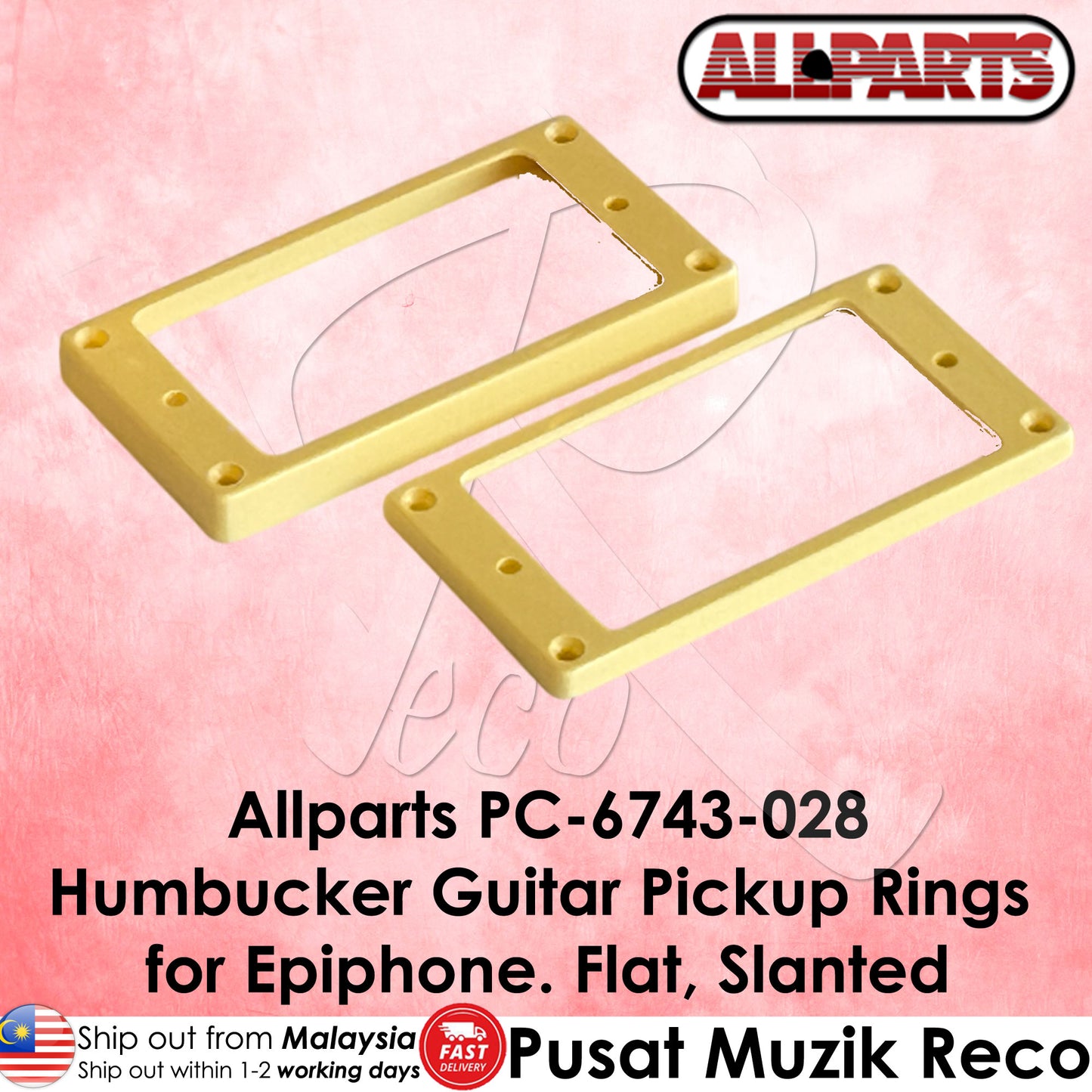

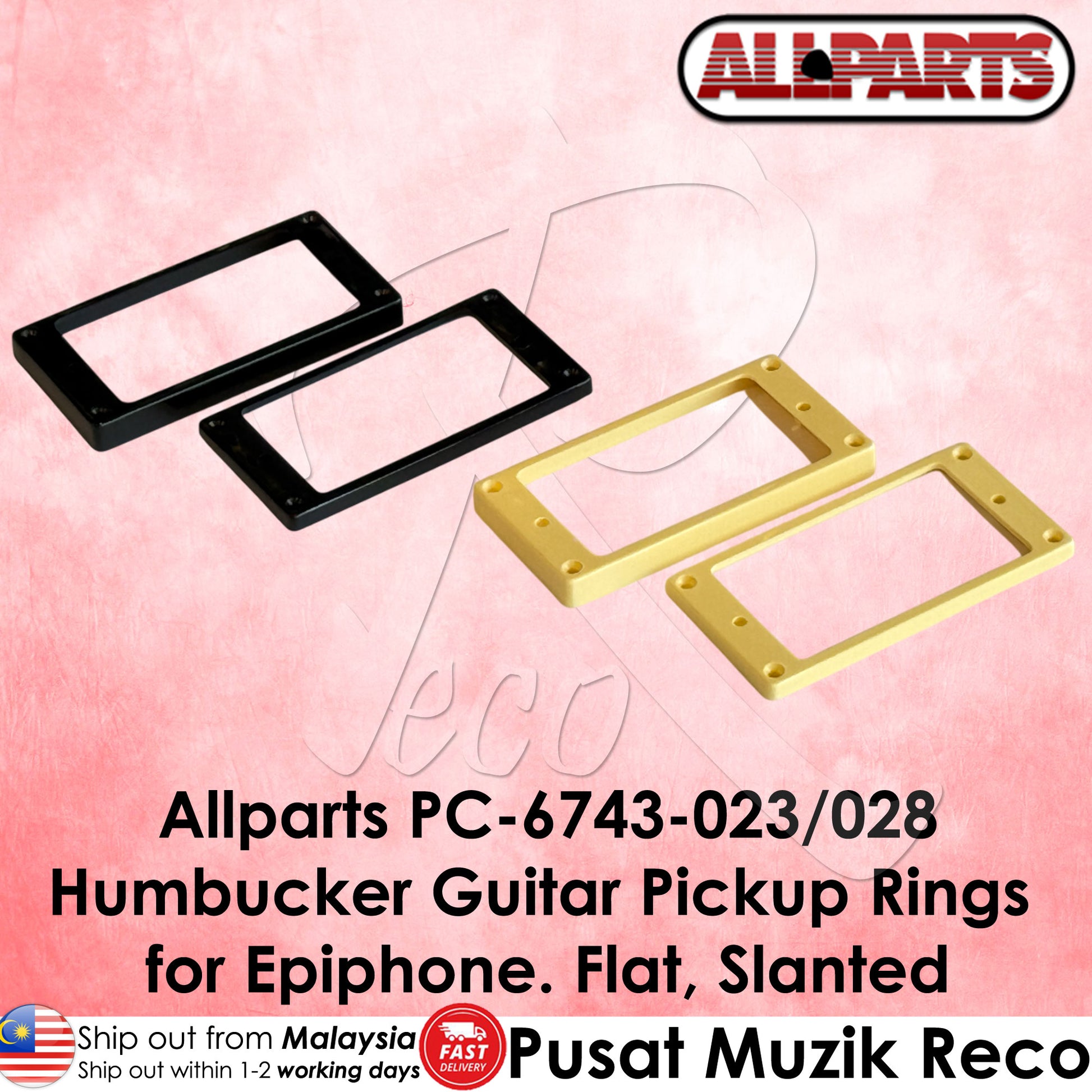

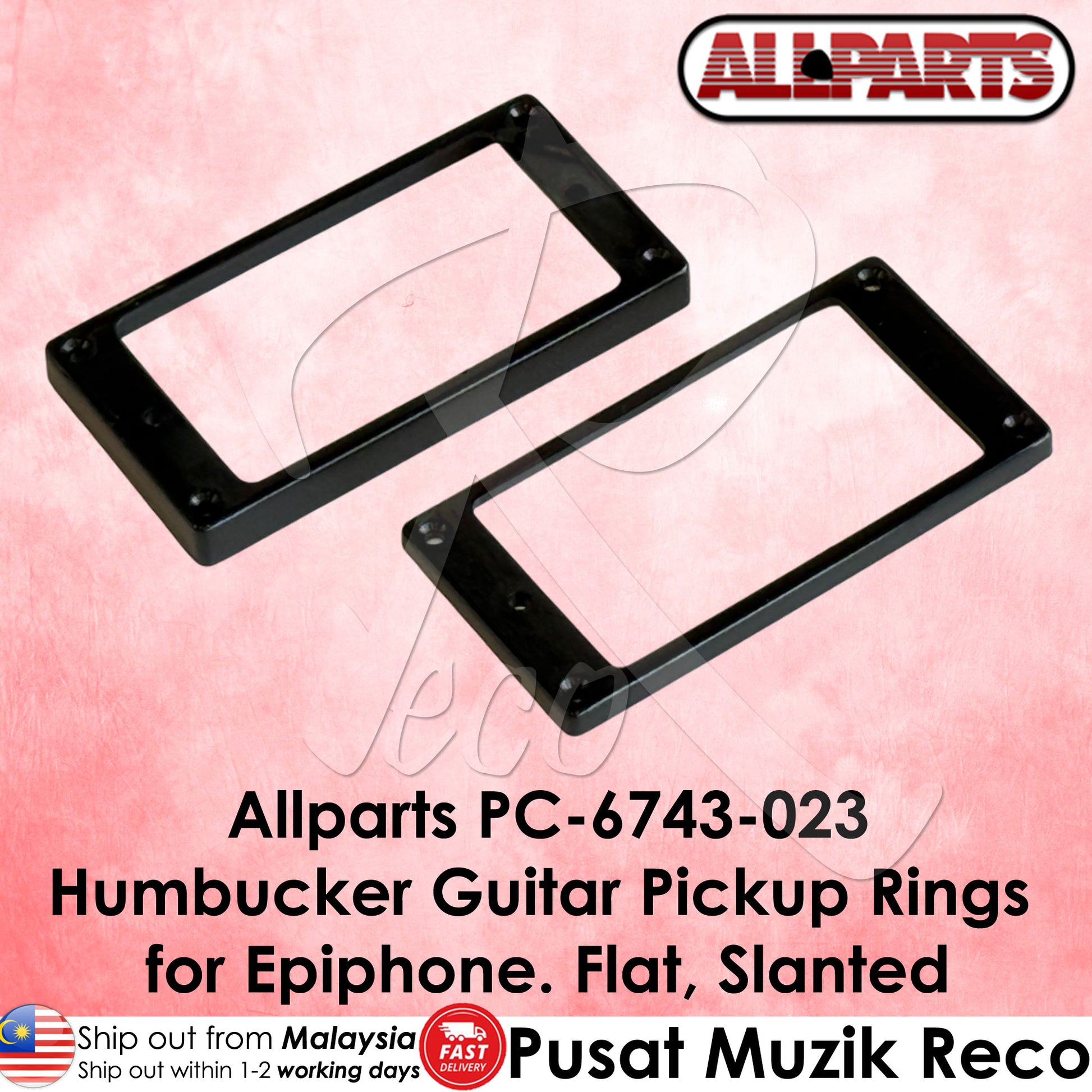

  • Model: PC-6743 (Black: PC-6743-023 / Cream: PC-6743-028)
  • Profile: Slanted Side, Flat Bottom
  • Contents: Neck ring + Bridge ring (set of 2)
  • Compatible With: Epiphone-style humbucker routing (flat top body)
  • Not Compatible With: Gibson carved-top guitars (use Gibson-spec rings with radiused bottom)
  • Finish Options: Black, Cream
