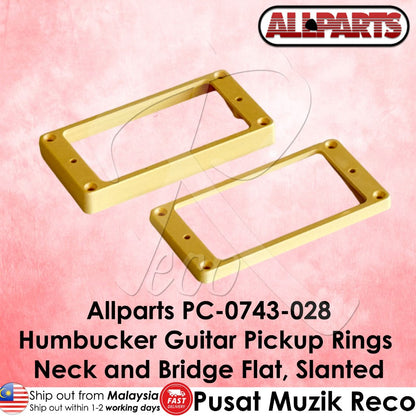

Allparts PC-0743 Slanted Humbucker Pickup Ring Set — Flat Bottom, Neck & Bridge

Allparts PC-0743 Slanted Humbucker Pickup Ring Set — Flat Bottom, Neck & Bridge

RM32.00
RM36.00 RM32.00
Sale Sold out
Shipping calculated at checkout.

Low stock

  • Free Delivery For Purchase Above RM100. T&C Apply.
  • Same Day Delivery For Melaka Area Is Available
  • Orders Placed Before 12:00 PM Will Be Dispatched The Same Day
  • Flexible Payment Plans Available On Purchases Over RM1,000 For MAYBANK Cardholders
Color: Black

Shipping & Delivery

🚚 Peninsular Malaysia: 2–5 business days
🚚 Sabah & Sarawak: 5–10 business days
📦 Orders processed within 1 business day
💳 Tracking number provided upon dispatch

Returns & Warranty

✅ 7-day return policy for unused, unopened items
✅ Items must be in original packaging with receipt
✅ Manufacturer warranty applies to all products
📧 Contact us to initiate a return
⚠️ Strings, picks, harmonicas and drumheads are non-returnable once opened

View full details

Allparts PC-0743 Slanted Humbucker Pickup Ring Set — Flat Bottom, Neck & Bridge

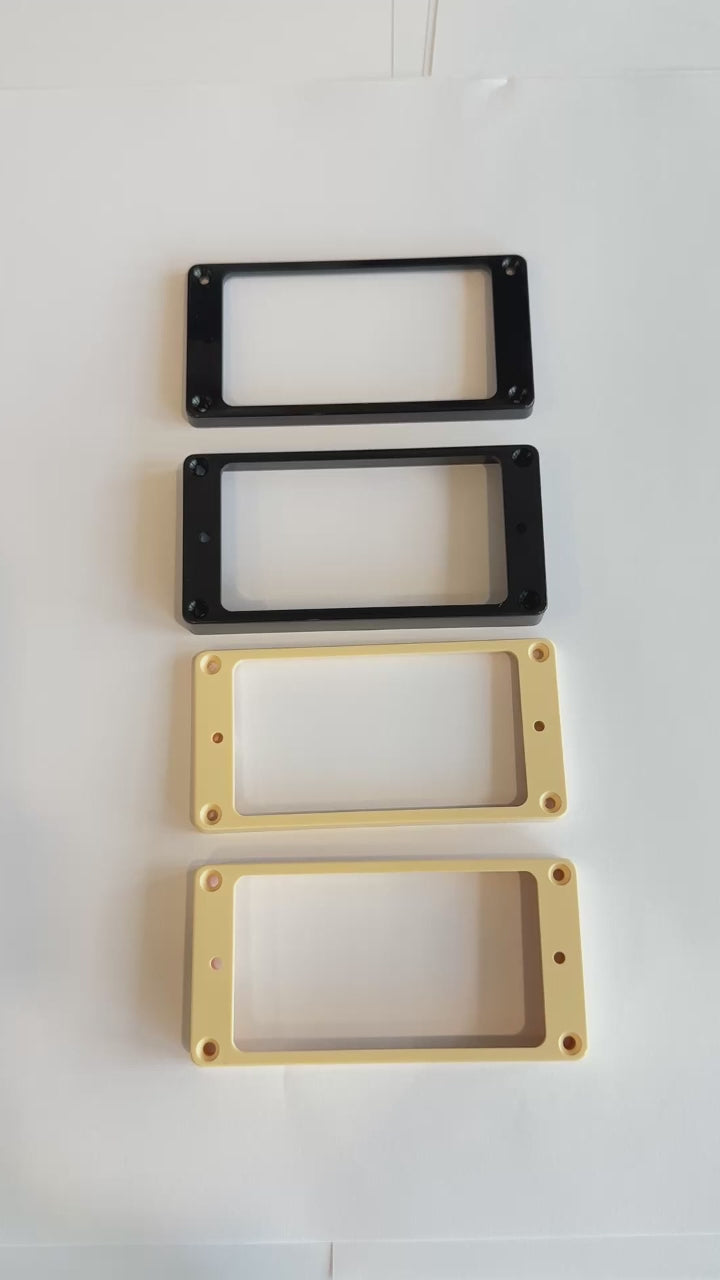

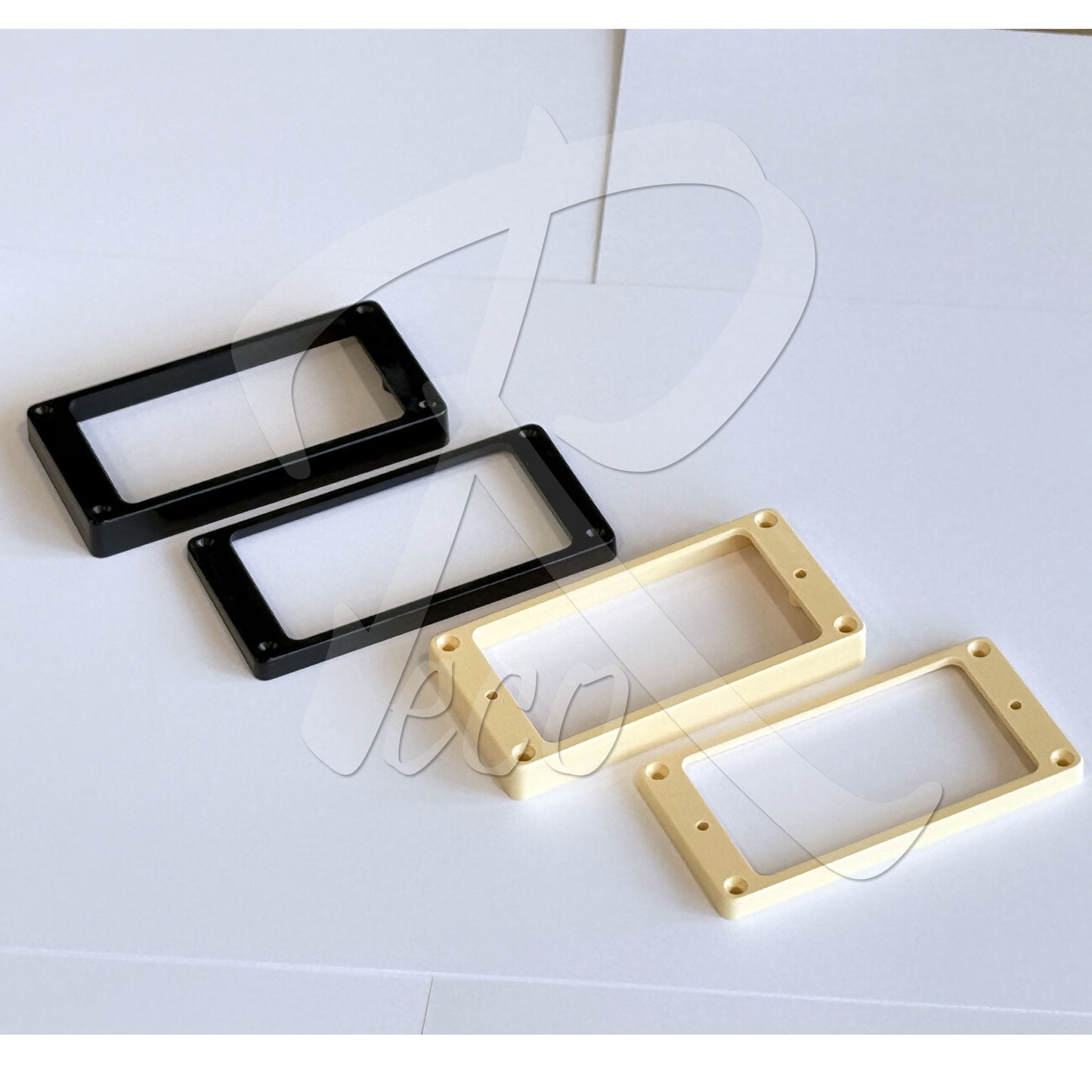

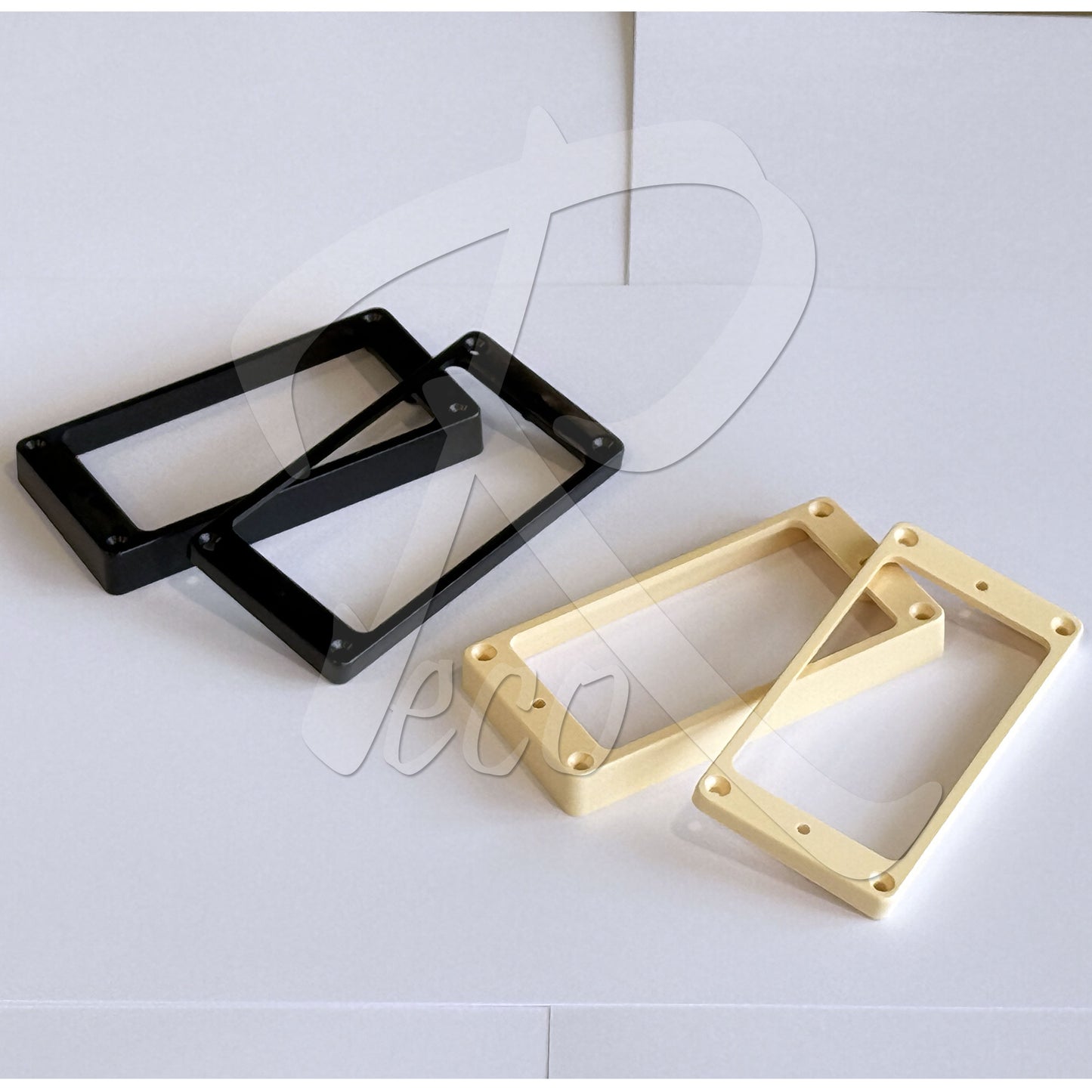

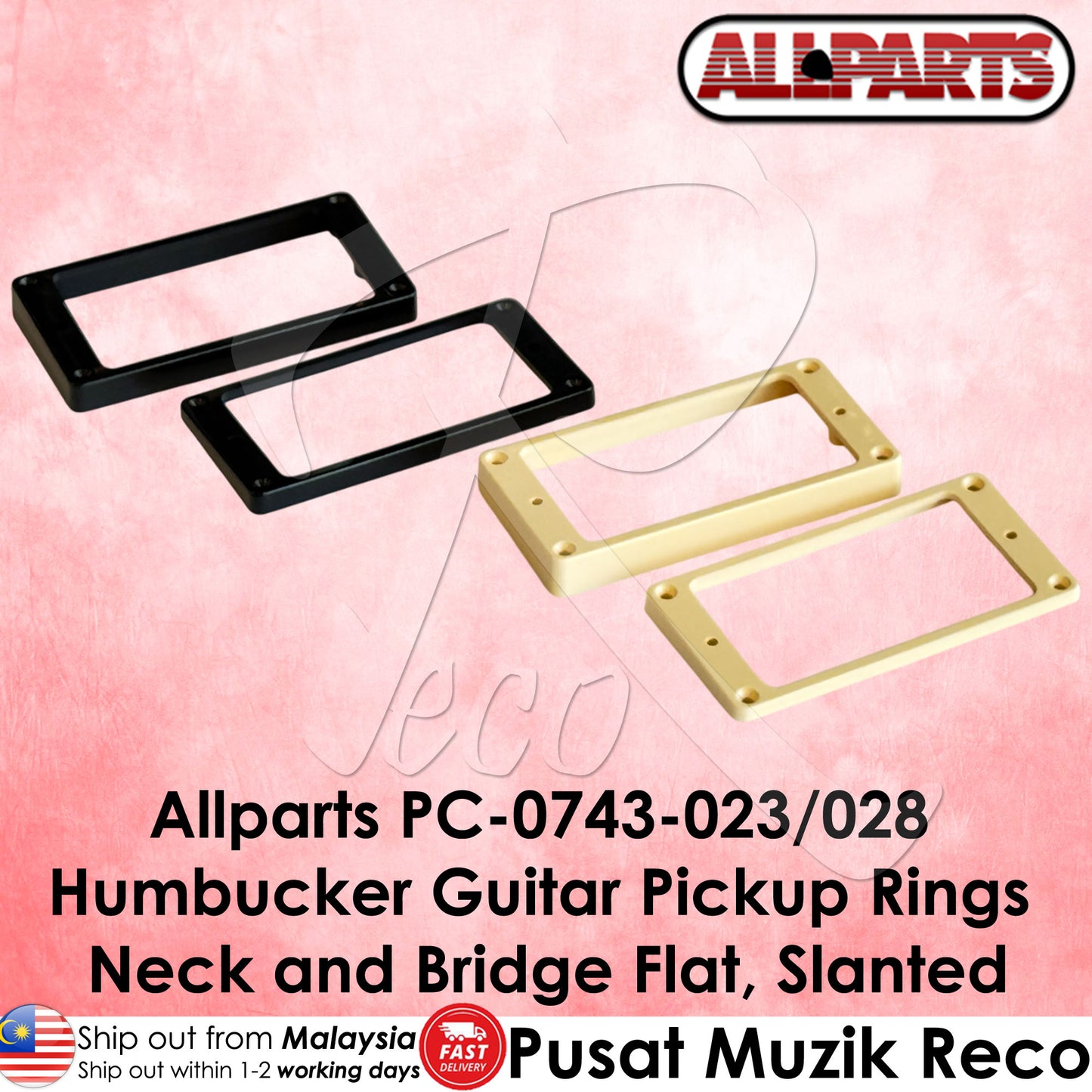

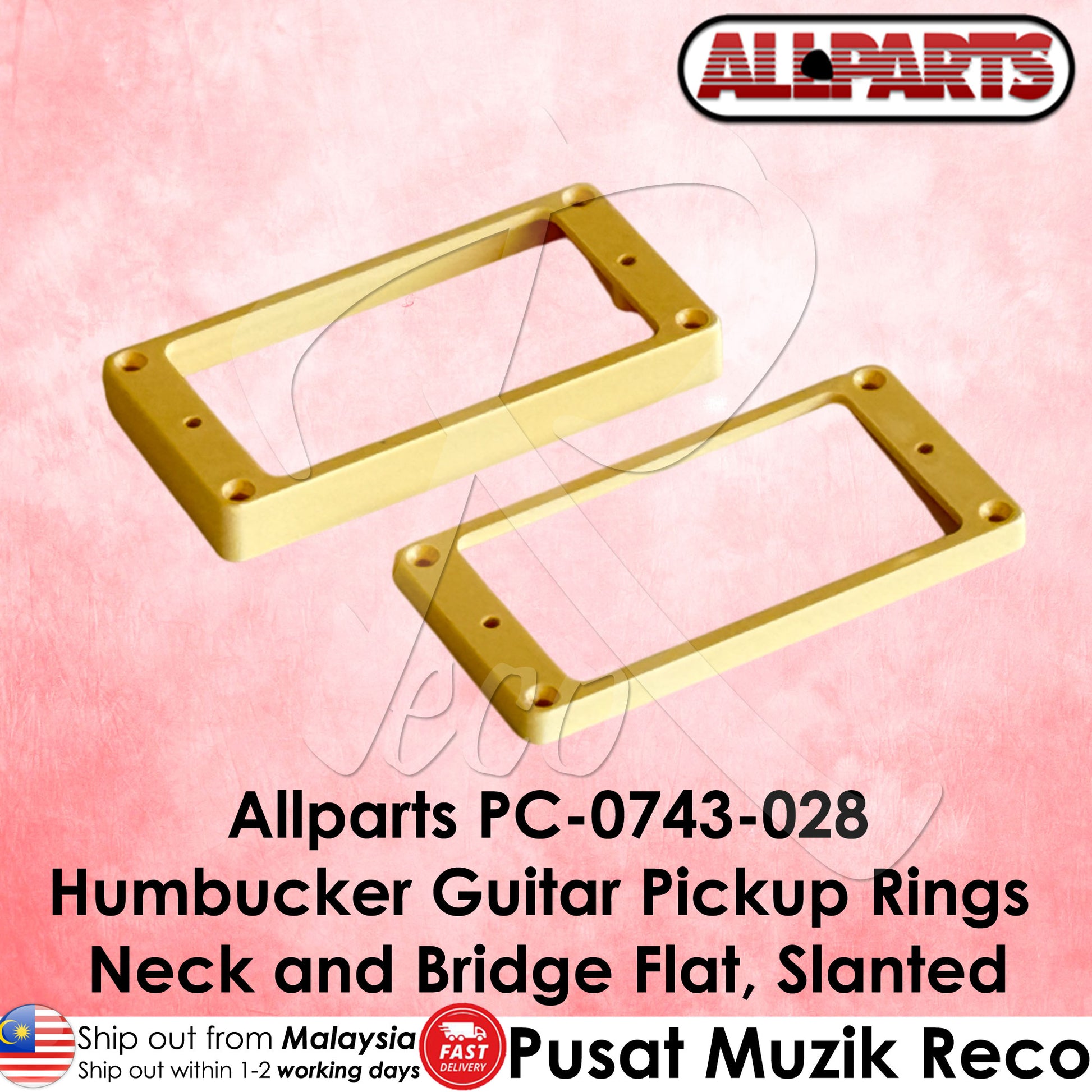

The Allparts PC-0743 is a replacement humbucker pickup ring set with slanted sides and a flat bottom — designed for flat-top electric guitars where the pickup needs to be angled to follow the string plane. Includes one short neck ring and one tall bridge ring. Compatible with most standard humbucker pickups on flat-top guitar bodies. Available in Black (PC-0743-023) and Cream.

Slanted Side, Flat Bottom — For Flat-Top Guitars

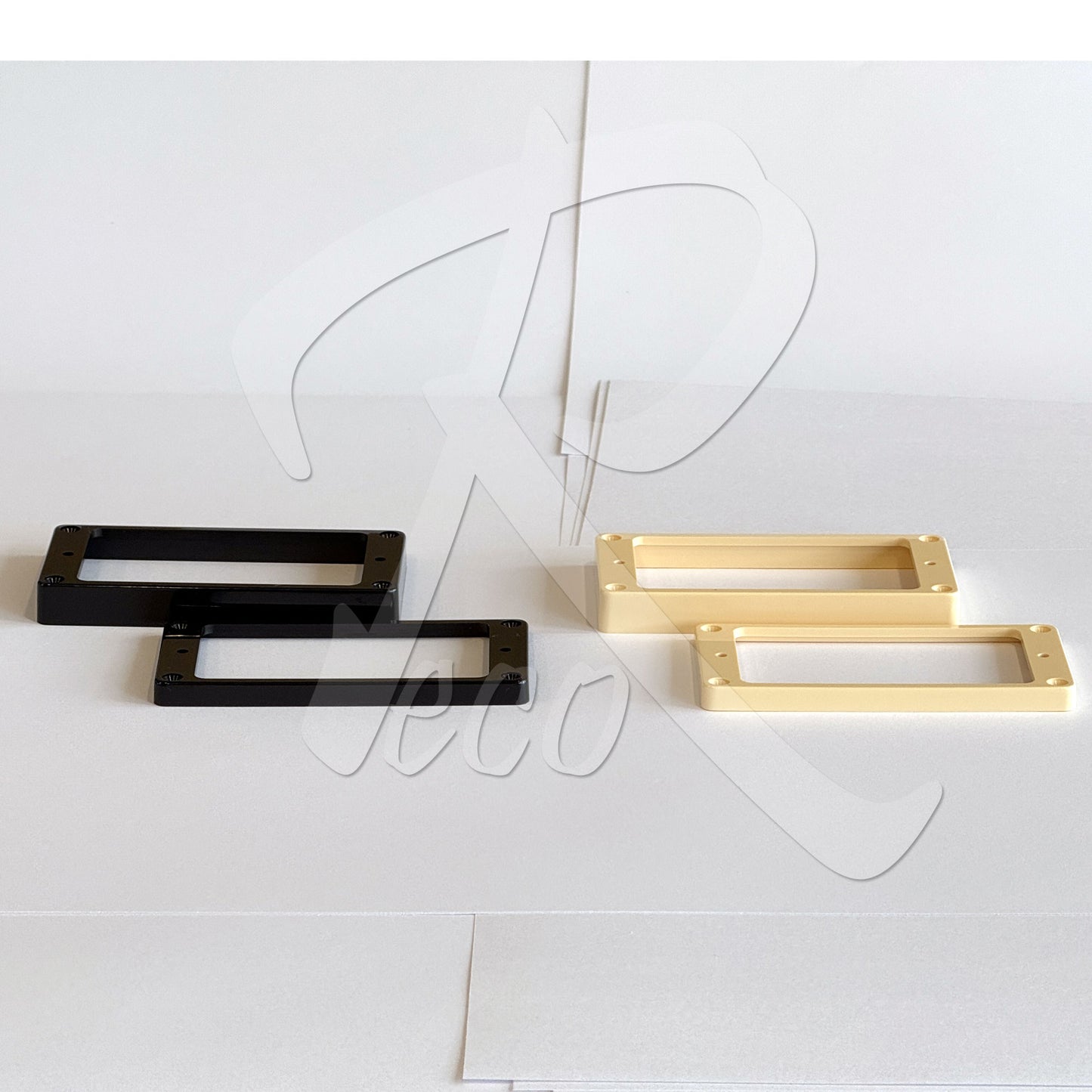

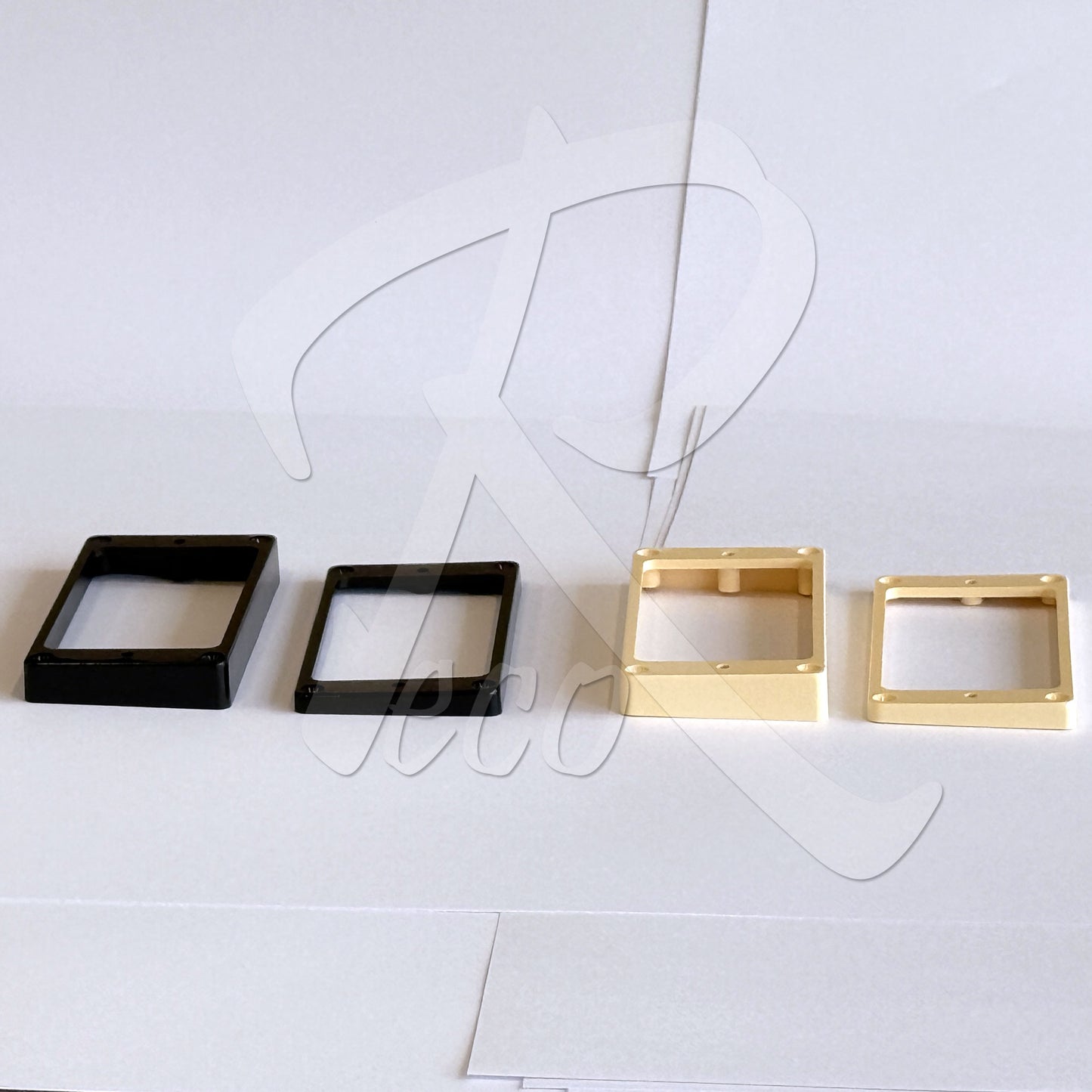

The slanted (tapered) side profile angles the pickup face to align with the string plane — the bridge end of the ring is taller than the neck end, tilting the pickup toward the strings for correct pickup-to-string distance across all six strings. The flat bottom is designed to sit flush against a flat guitar top. This is the correct ring geometry for most flat-top humbucker-equipped guitars including many import Les Paul-style, SG-style, and custom build instruments with flat body tops.

Compatibility — Check Before Ordering

Pickup ring fitment depends on both the body top geometry and the pickup routing dimensions. The PC-0743 is compatible with most standard humbucker routing on flat-top bodies, but is not compatible with the following:

  • Gibson carved-top guitars (Les Paul, ES-335, etc.) — require a ring with a radiused (curved) bottom to match the carved top
  • Epiphone guitars — use a different slanted ring geometry; see the PC-6743 (Epiphone-specific)
  • EMG active pickups — use EMG-specific mounting rings

Specifications

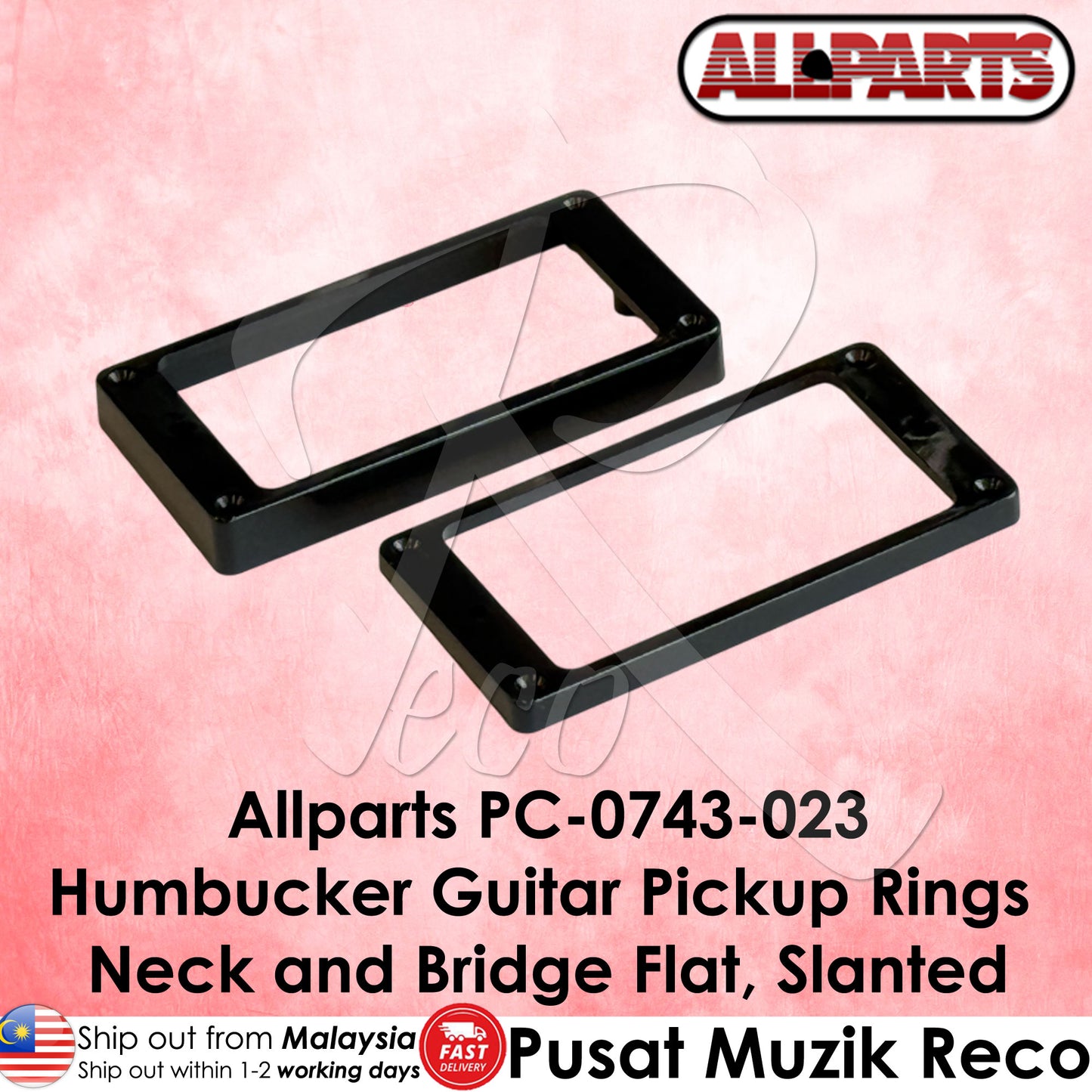

  • Model: PC-0743 (Black: PC-0743-023)
  • Profile: Slanted Side, Flat Bottom
  • Contents: Neck ring + Bridge ring (set of 2)
  • Outside Dimensions: 88.9mm × 44.5mm (3-17/32" × 1-25/32")
  • Inside Dimensions: 69.9mm × 38.1mm (2-3/4" × 1-1/2")
  • Neck Ring Height: Tapers 4.8mm – 6.4mm (3/16" – 1/4")
  • Bridge Ring Height: Tapers 9.5mm – 11.1mm (3/8" – 7/16")
  • Mounting Hole Spacing: 37mm × 81mm (1-7/16" × 3-3/16") centre-to-centre
  • Material: Plastic
  • Epiphone Alternative: PC-6743 (Epiphone-specific slanted ring)
