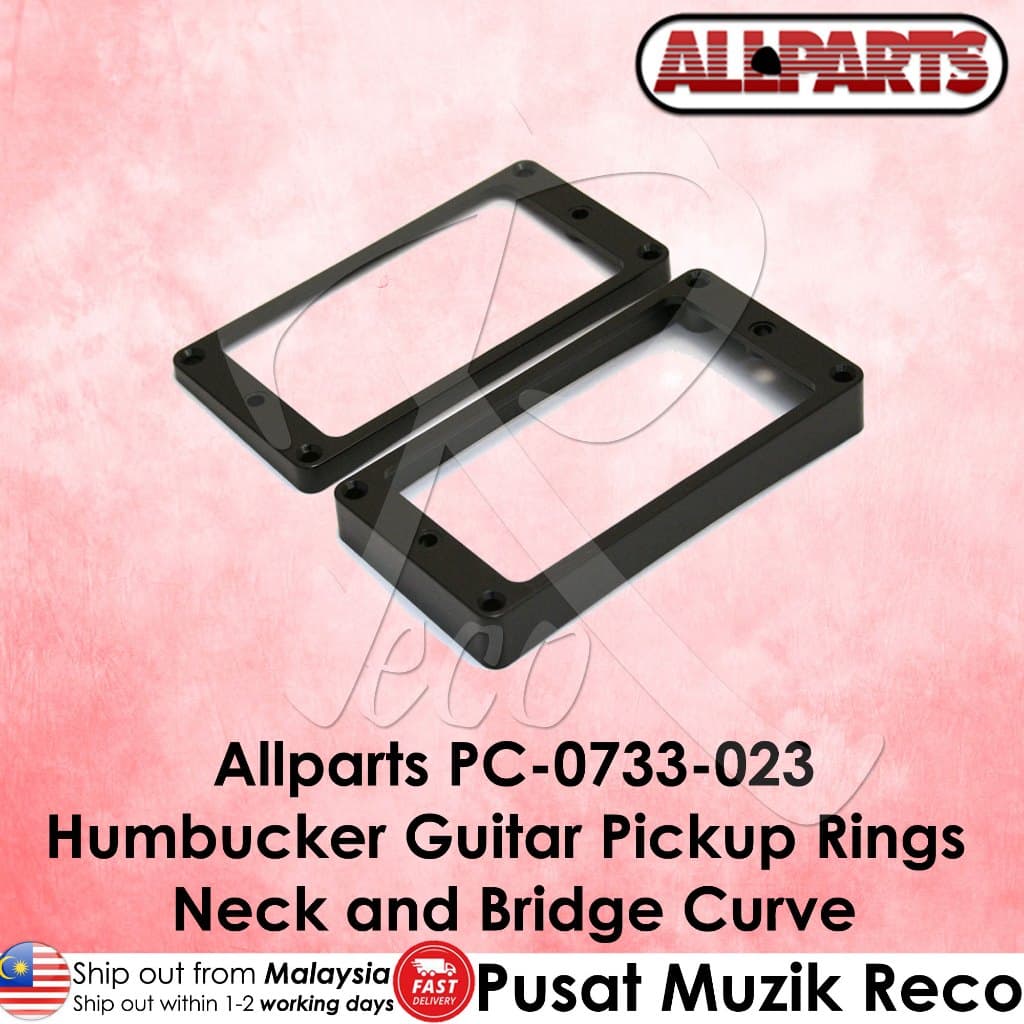

Allparts PC-0733-023 Black Humbucker Pickup Ring Set — Curved Bottom, for Carved-Top Guitars

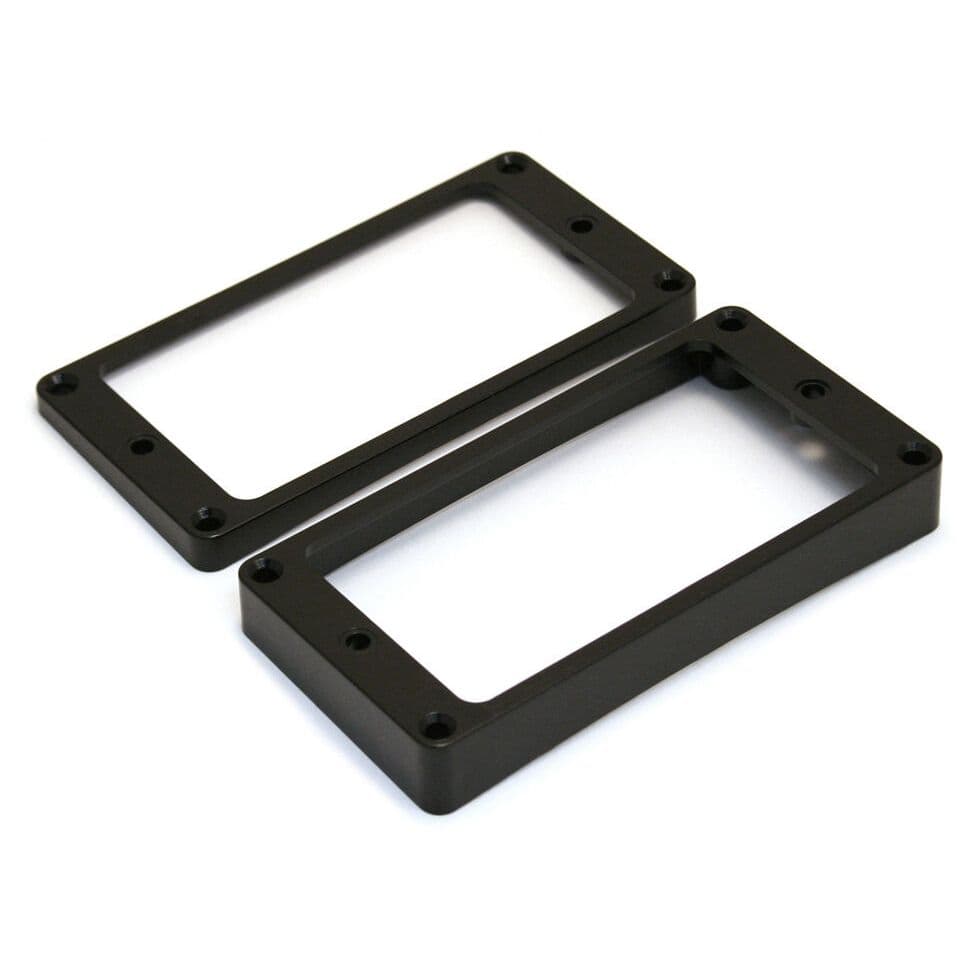

The Allparts PC-0733-023 is a black humbucker pickup ring set with a curved (radiused) bottom and slanted sides — designed specifically for carved-top electric guitars such as Gibson and Epiphone Les Pauls, where the arched body top requires a ring with a matching curved underside to sit flush. Includes one short neck ring and one tall bridge ring. Compatible with most standard-sized humbucker pickups.

Curved Bottom — Required for Carved-Top Guitars

This is the most important distinction when selecting pickup rings for a Les Paul-style guitar. Gibson carved-top guitars have an arched body top — a flat-bottom ring placed on a carved top will rock or sit unevenly, leaving gaps between the ring and the body. The PC-0733-023's curved (radiused) bottom is shaped to match the arch of a standard Gibson-style carved top, allowing the ring to sit flush and stable. If your guitar has a carved or arched top, this is the correct ring geometry. For flat-top guitars, see the PC-0743 (slanted, flat bottom) or PC-0745-028 (non-slanted, flat bottom, cream).

Slanted Sides — Angled Pickup Face

The slanted sides angle the pickup face toward the strings, providing correct pickup-to-string distance across all six strings. Both the neck and bridge rings are slanted, with the bridge ring being taller overall to account for the greater string-to-body distance at the bridge position.

Compatibility Notes

Compatible with most standard-sized humbucker pickups (Seymour Duncan, DiMarzio, and similar). Not compatible with EMG active pickups (which use EMG-specific mounting rings) or certain Epiphone-specific pickup sizes. Confirm your mounting hole spacing (81mm centre-to-centre) before ordering.

Specifications

• Model: PC-0733-023
• Colour: Black
• Profile: Slanted Sides, Curved (Radiused) Bottom
• Contents: Neck ring + Bridge ring (set of 2)
• Outside Dimensions: 3-9/16" × 1-3/4" (90.5mm × 44.5mm)
• Inside Dimensions: 2-3/4" × 1-1/2" (69.9mm × 38.1mm)
• Mounting Hole Spacing: 81mm (centre-to-centre)
• Bridge Ring Taper: 3/8" – 5/16" (9.5mm – 7.9mm)
• Neck Ring Taper: 7/32" – 5/32" (5.6mm – 4.0mm)
• Weight: ~10.1g (set)

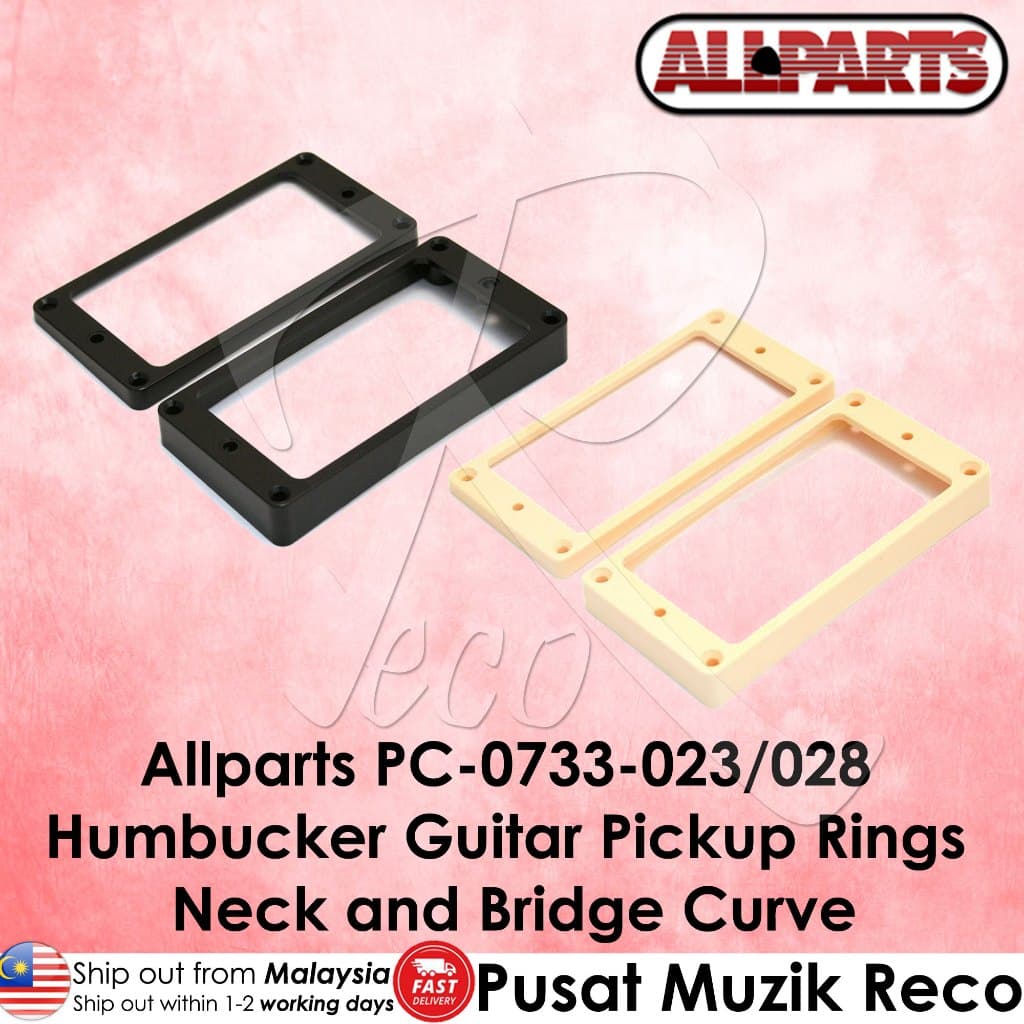

• Cream Alternative: PC-0733-028 (Curved Bottom, Cream)
• Flat-Top Alternative: PC-0743 (Slanted, Flat Bottom) / PC-0745-028 (Non-Slanted, Flat Bottom, Cream)
• Epiphone-Specific: PC-6743 (Slanted, Epiphone fit)
