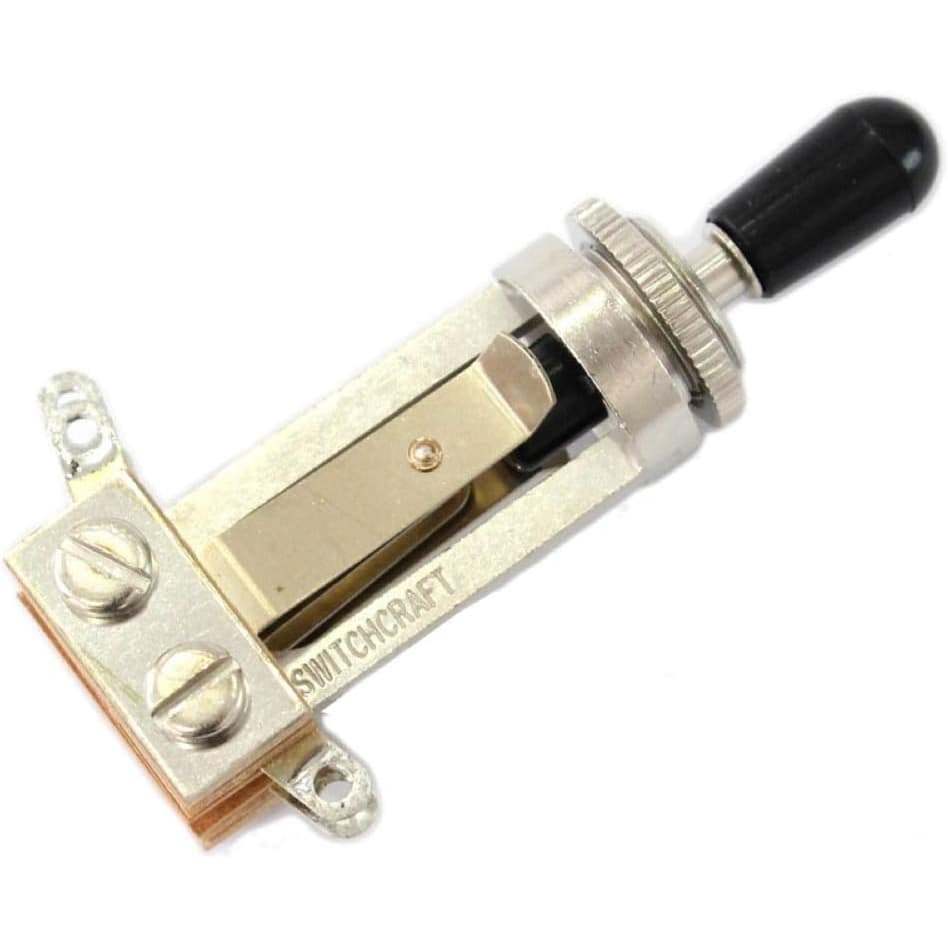

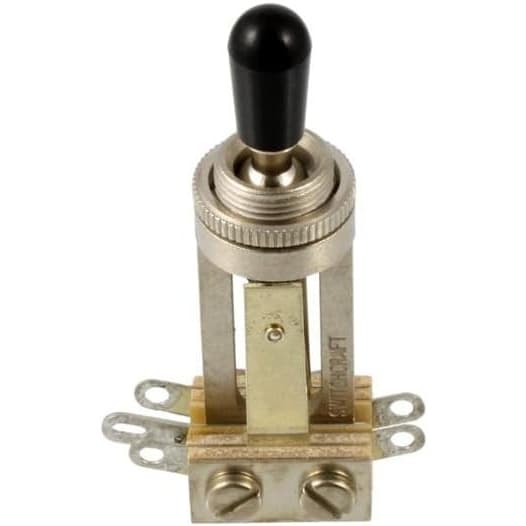

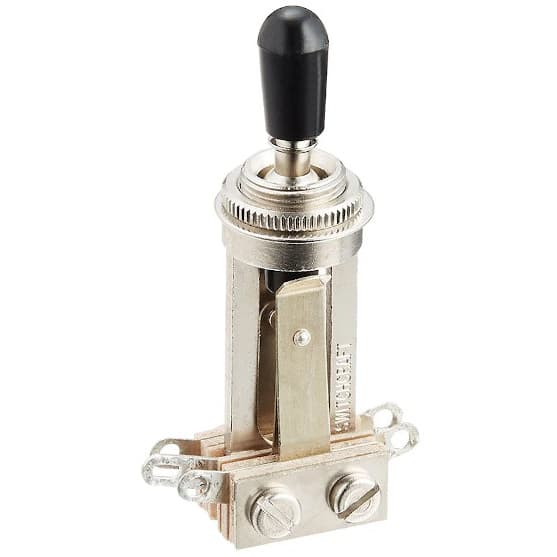

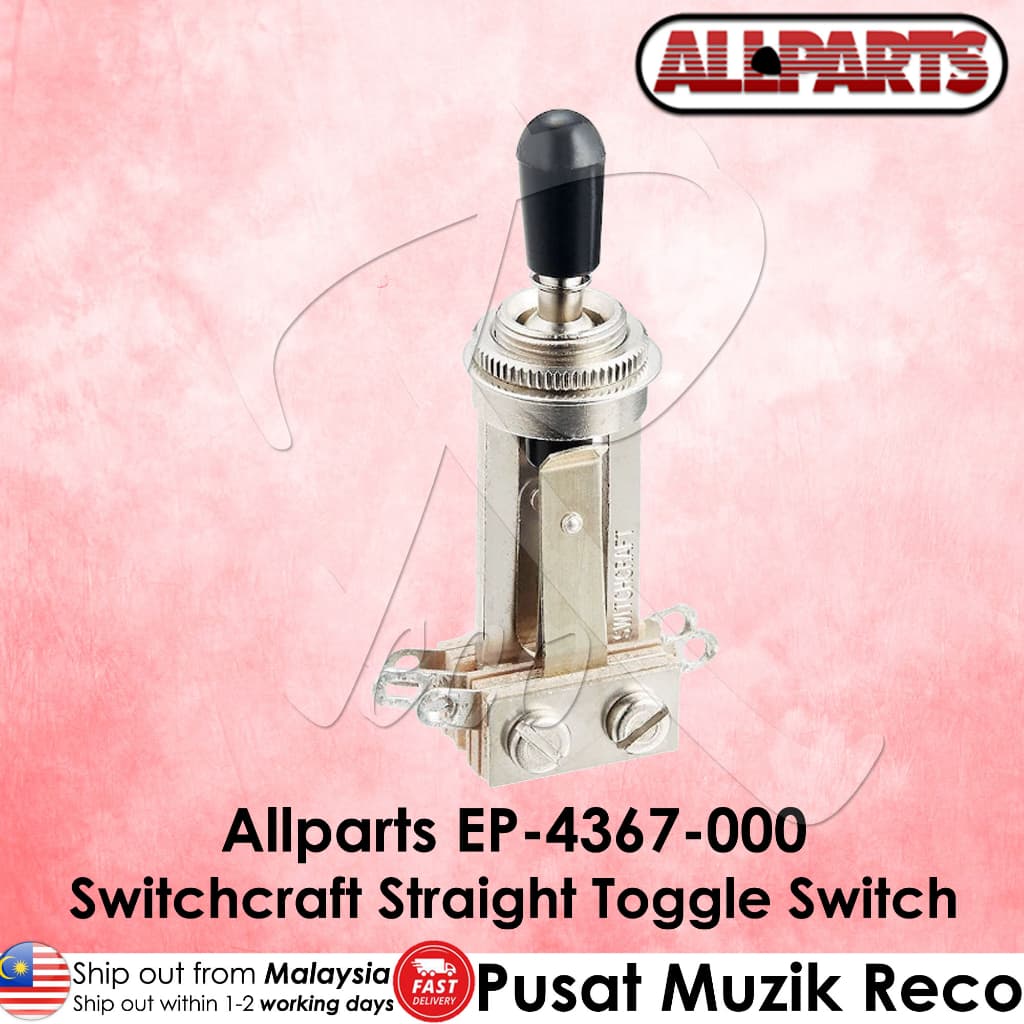

Allparts EP-4367-000 Switchcraft 3-Way Straight Toggle Switch for Les Paul & Gibson-Style Guitars

The Allparts EP-4367-000 is a genuine Switchcraft 3-way straight toggle switch — the industry-standard pickup selector switch for Gibson Les Paul, SG, ES-335, and other 2-pickup Gibson-style electric guitars with thicker body tops. Terminals are pre-tinned at the factory for easier soldering. Includes a genuine Switchcraft black switch tip and knurled nut. Made in the USA.

Straight vs Angled — Which Toggle Switch Do You Need?

Switchcraft makes two toggle switch variants for Gibson-style guitars — straight and angled — and selecting the correct one depends on your guitar's body thickness and switch cavity depth:

• Straight toggle (EP-4367-000) — designed for thicker-body guitars such as the Les Paul, where the switch cavity is deep enough to accommodate the straight switch body. The switch shaft exits the body perpendicular to the top. This is the correct switch for most Les Paul and ES-335 style guitars.
• Angled toggle (EP-4369-000) — designed for thinner-body guitars such as the SG and ES-175, where the shallower body depth requires the switch body to be angled to fit within the cavity. Using a straight switch in a thin-body guitar will result in the switch body bottoming out before the nut can tighten.

If you are unsure which type your guitar uses, measure your existing switch or check the body thickness at the switch cavity before ordering.

Switchcraft Quality — Made in the USA

Switchcraft toggle switches are the original equipment standard for Gibson guitars and the benchmark for reliability in professional instruments. Pre-tinned terminals make soldering faster and cleaner. A significant upgrade over generic import toggle switches that are prone to intermittent contact and mechanical failure.

Specifications

• Model: EP-4367-000
• Brand: Switchcraft (USA)
• Type: 3-Way Straight Toggle Switch
• Overall Dimensions: 2-1/2" H × 3/4" W
• Weight: 26g
• Terminals: Pre-tinned
• Includes: Black Switchcraft switch tip + knurled nut
• Compatible With: Les Paul, ES-335, and thicker-body 2-pickup Gibson-style guitars
• Angled Alternative: EP-4369-000 (for SG, ES-175, thin-body guitars)
• Deep Round Nut: EP-4923 (for thick-top guitars requiring extended thread depth)
