Allparts EP-0296-000 500K Push-Push Audio Pot with DPDT Switch

Name: Allparts EP-0296-000 500K Push-Push Audio Pot with DPDT Switch
Brand: AllParts
SKU: EP-0296-000
Price: 88.00 MYR
Availability: InStock

RM88.00 RM95.00

Shipping calculated at checkout.

In stock

Free Delivery For Purchase Above RM100. T&C Apply.

Same Day Delivery For Melaka Area Is Available

Orders Placed Before 12:00 PM Will Be Dispatched The Same Day

Flexible Payment Plans Available On Purchases Over RM1,000 For MAYBANK Cardholders

✅ 100%
Genuine

🏪 Trusted
Since 1997

🔄 7-Day
Returns

⭐ 5,000+
Customers

Pickup available at 9, Jalan Melaka Raya 14, Taman Melaka Raya, Melaka , Malaysia

Usually ready in 2 hours

🚚 Peninsular Malaysia: 2–5 business days
🚚 Sabah & Sarawak: 5–10 business days
📦 Orders processed within 1 business day
💳 Tracking number provided upon dispatch

✅ 7-day return policy for unused, unopened items
✅ Items must be in original packaging with receipt
✅ Manufacturer warranty applies to all products
📧 Contact us to initiate a return
⚠️ Strings, picks, harmonicas and drumheads are non-returnable once opened

Our products are manufactured both locally and globally. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.

Description

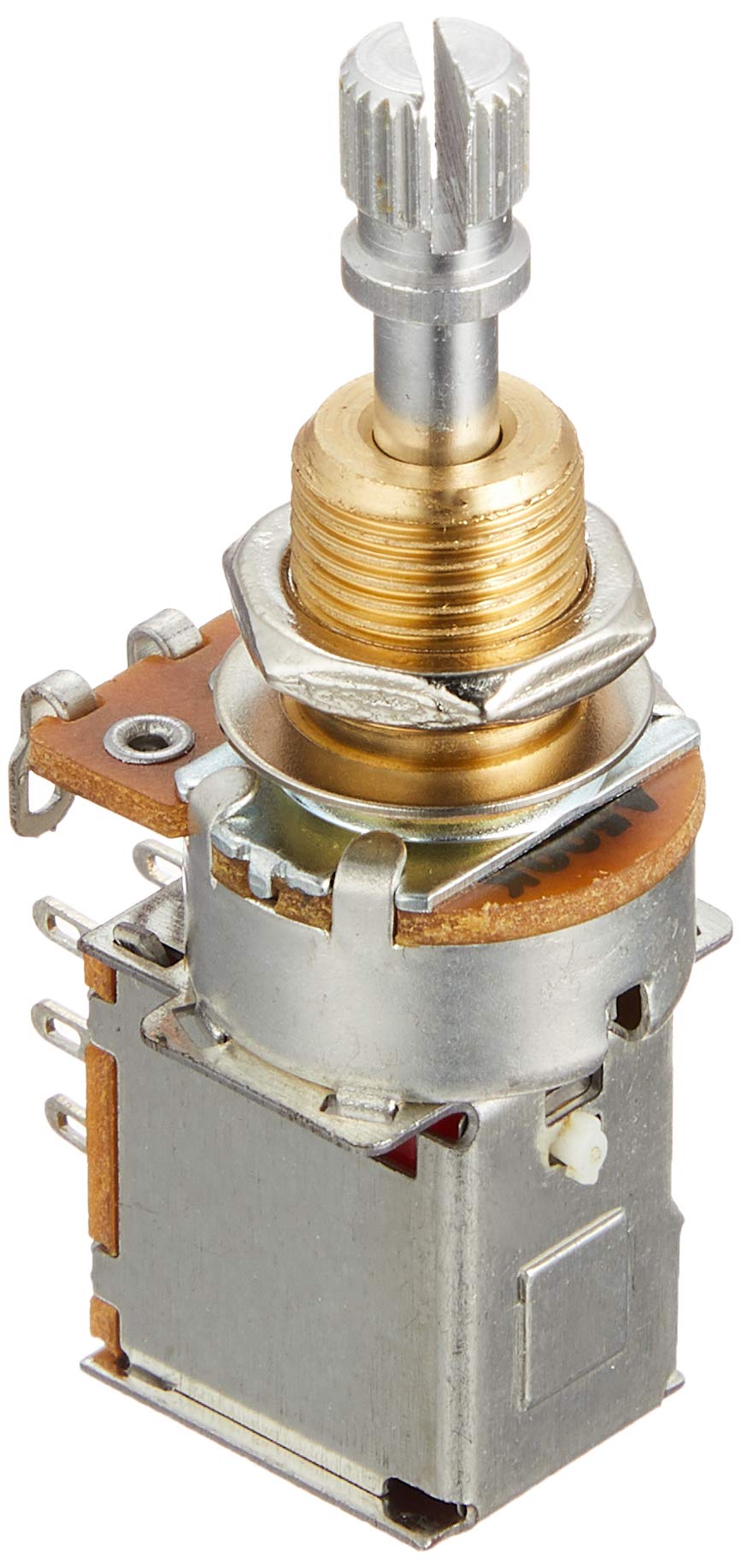

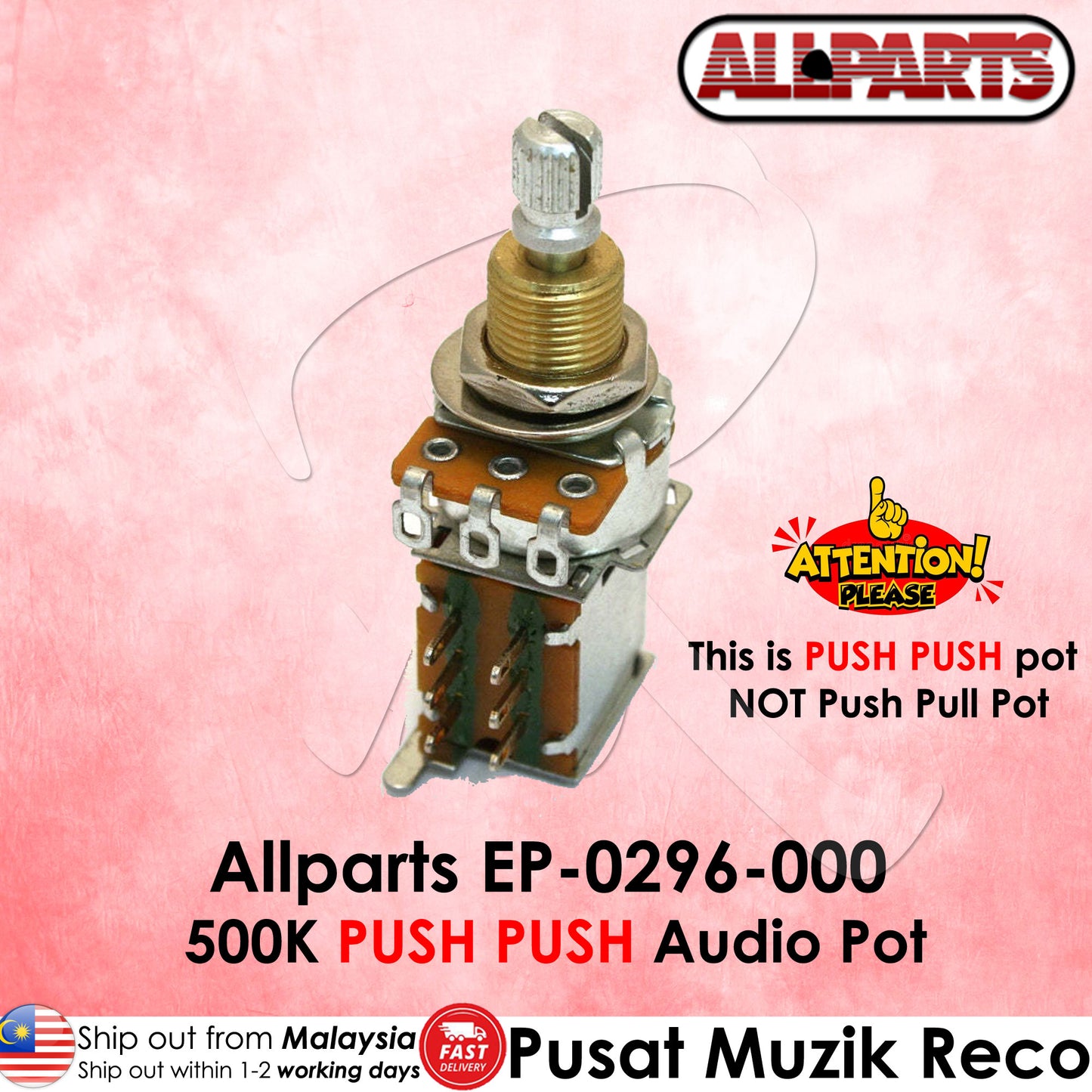

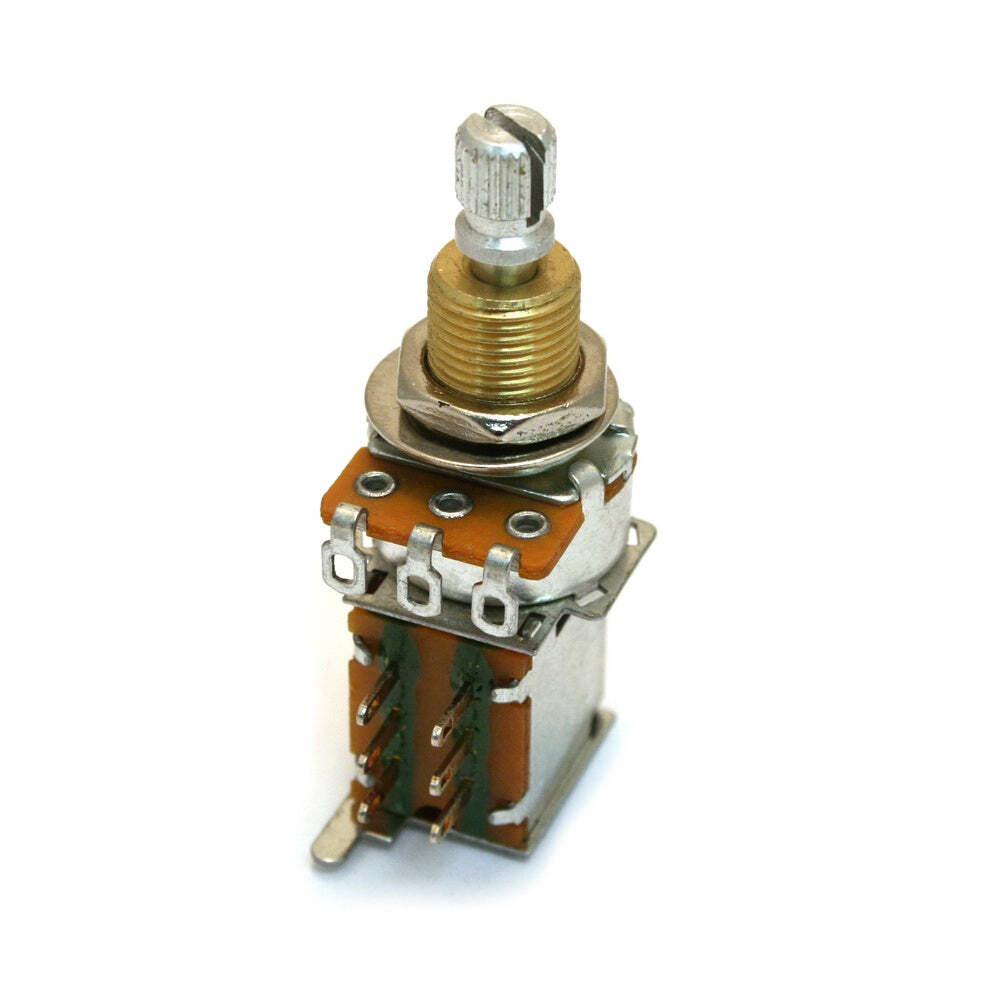

The Allparts EP-0296-000 is a 500K audio taper potentiometer with an integrated push-push DPDT switch — combining a standard volume or tone pot with a built-in switching function activated by pressing the knob down. The push-push mechanism toggles the switch each time the knob is pressed, returning to the previous state on the next press. Includes nut and dress washer. Split splined shaft. Made in the USA.

Push-Push vs Push-Pull — What's the Difference?

Both push-push and push-pull pots combine a standard potentiometer with an integrated DPDT switch, but they operate differently. A push-pull pot requires you to physically pull the knob upward to engage the switch and push it back down to disengage — the knob position (up or down) indicates the switch state. A push-push pot uses a momentary press-and-release action to toggle the switch — the knob stays at the same height regardless of switch state, and each press toggles between the two positions. Push-push is preferred by players who want a cleaner look (no visible knob height change) and a quicker, more intuitive switching action.

Common Wiring Applications

The integrated DPDT switch can be wired for a wide range of switching functions without adding extra switches or modifying the guitar's appearance, including coil-splitting (splitting a humbucker to single-coil), series/parallel switching, phase reversal, pickup on/off switching, and active/passive switching on active electronics. The switching function is completely independent of the pot's volume or tone control function.

500K — Audio Taper — Suited to Humbuckers

The 500K resistance value is the standard for humbucker-equipped guitars, preserving high-frequency content and brightness. The audio (logarithmic) taper provides a natural, smooth volume sweep that matches the human ear's perception of volume — the correct taper for a volume or tone control application.

Specifications

Model: EP-0296-000
Resistance: 500K
Taper: Audio (Logarithmic)
Switch Type: Push-Push DPDT
Shaft: Split splined (24-spline)
Includes: Nut and dress washer
Made in: USA
