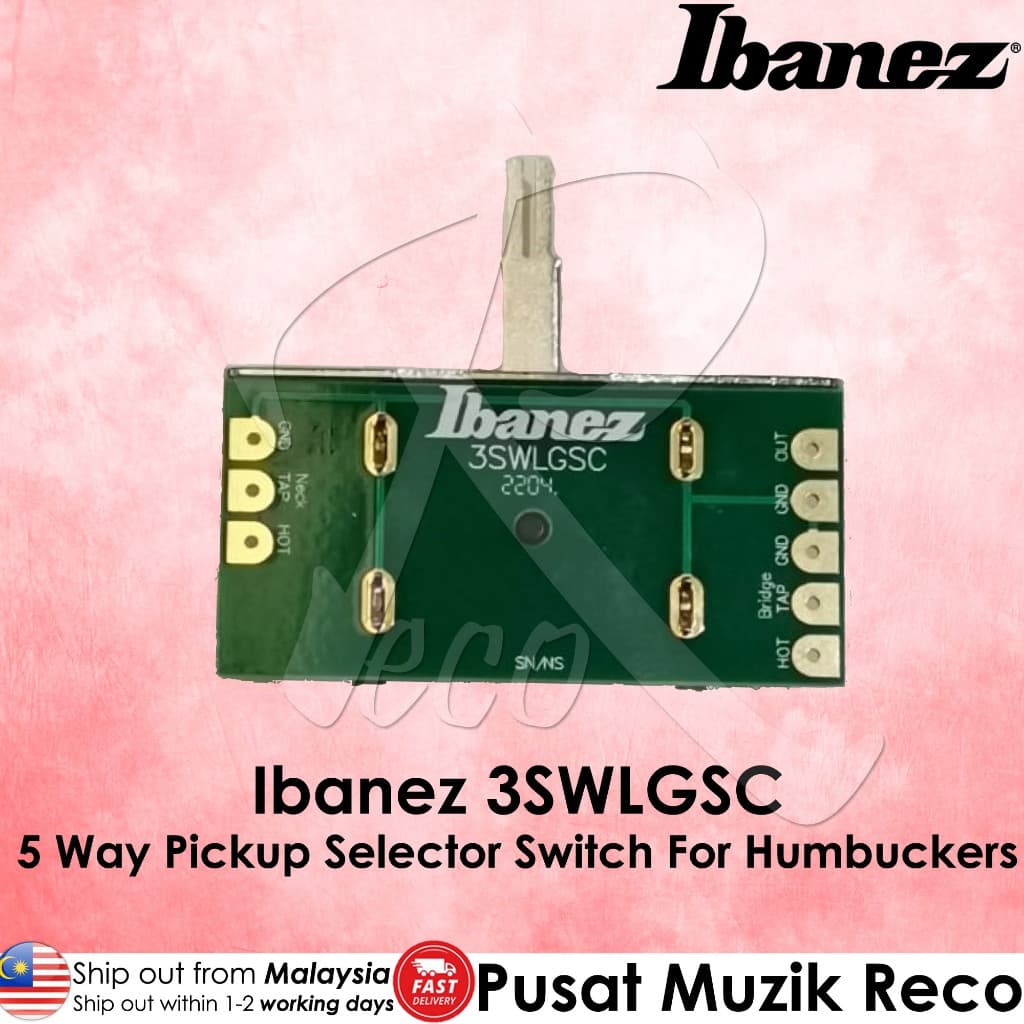

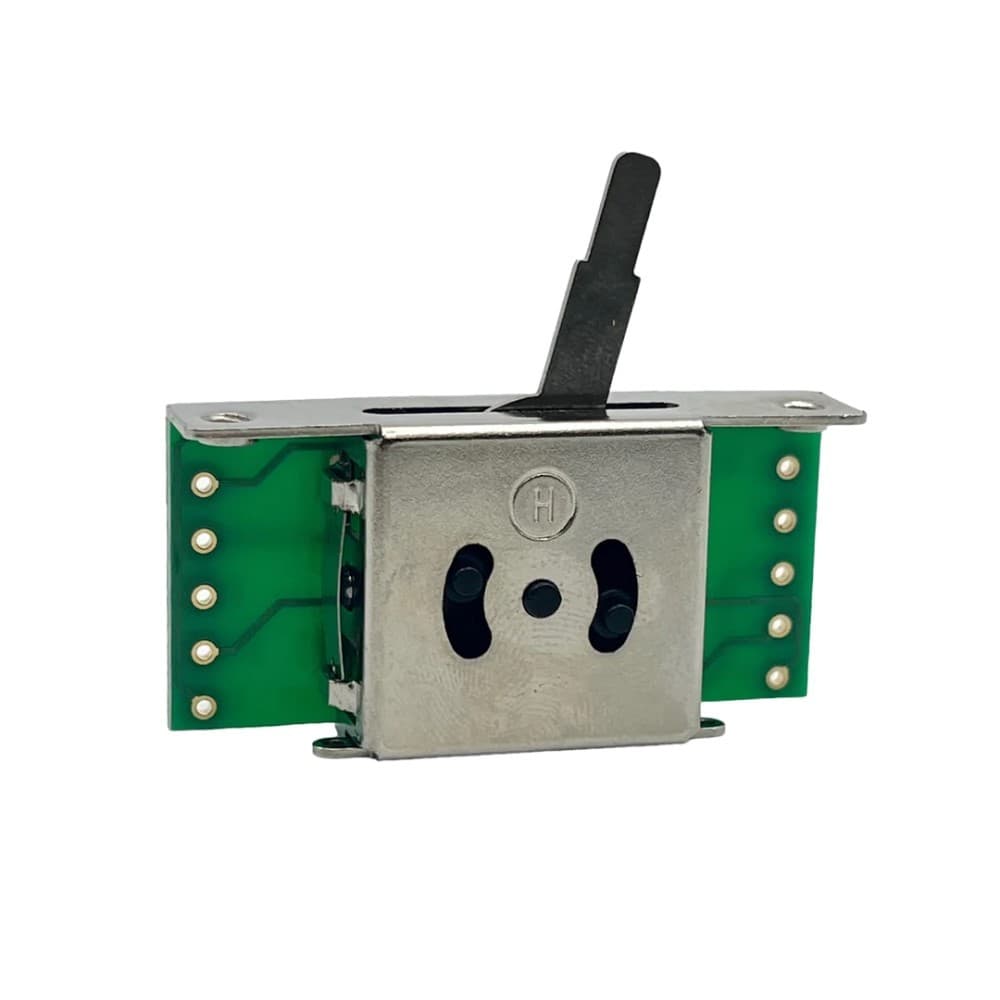

Ibanez 3SWLGSC 5 Way Blade Pickup Selector Toggle Switch

Ibanez 3SWLGSC 5 Way Blade Pickup Selector Toggle Switch

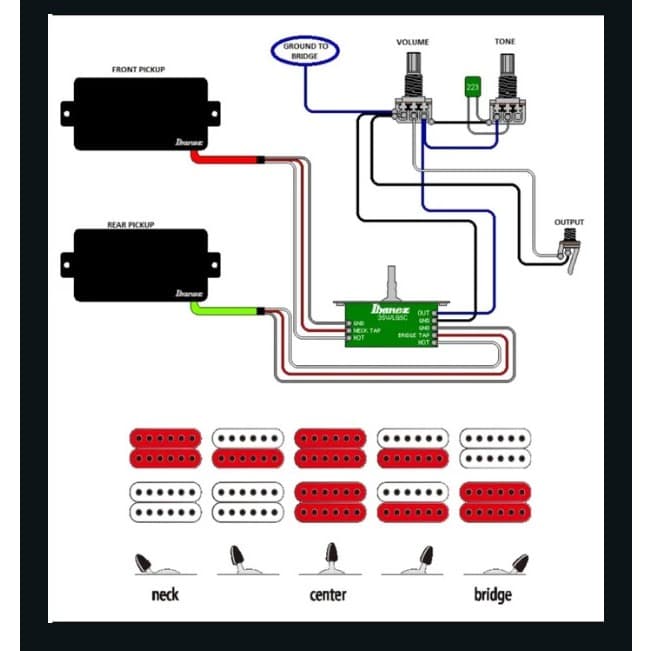

The Ibanez 3SWLGSC 5-way lever switch for HH wiring. This switch features the standard humbucker options of “bridge-both-neck” in position 1,3, and 5 with parallel configurations in positions 2 and 4 for some cleaner, shimmering tones. This switch combines coils from two different pickups in position 4. If your guitar has non original pickups, proper wiring may require testing the polarity and troubleshooting winding direction for proper sound from this position.

Ibanez 3SWLGSC 5-Position Blade Pickup Selector Toggle Switch:

• 5-way pickup selector Ibanez Style Standard
• NOT COMMON 5-way pickup selector switch.
• Used for HH dual humbucker pickups.
