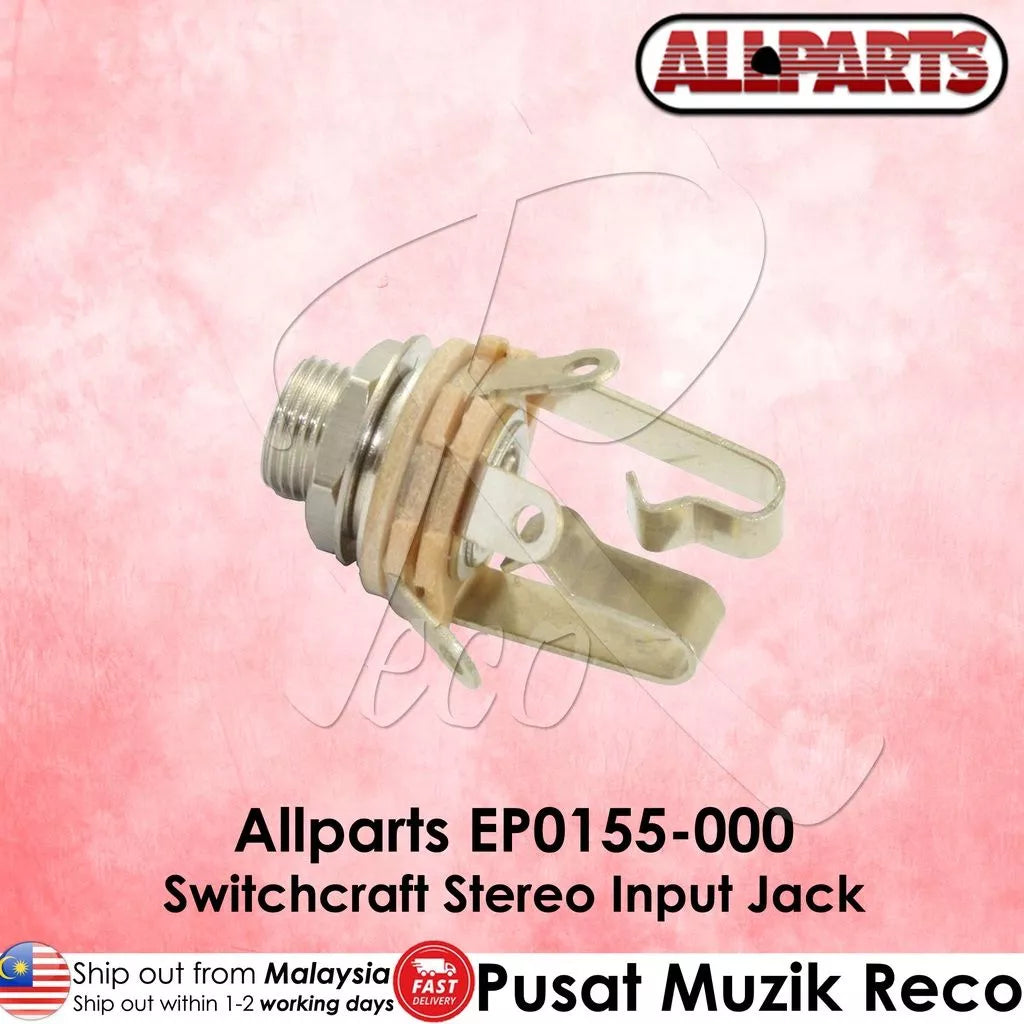

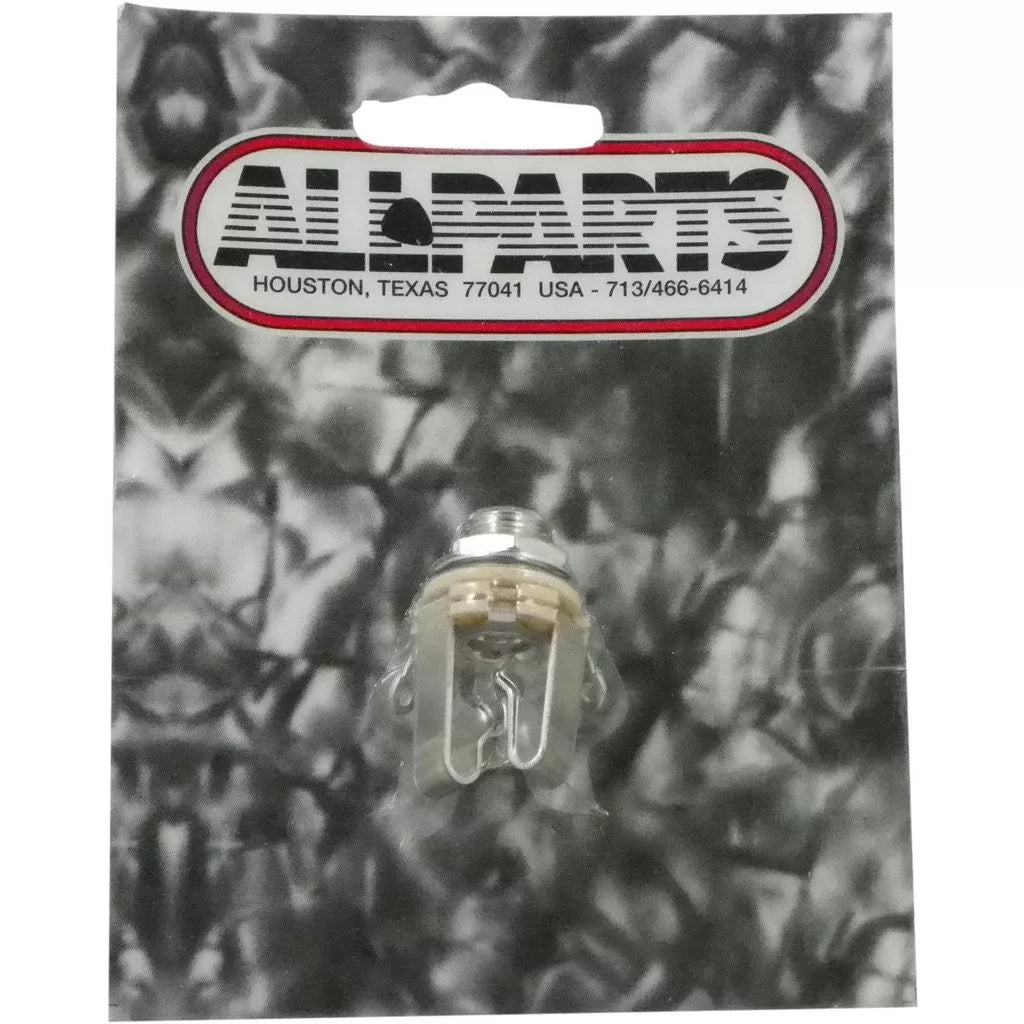

Allparts EP-0155-000 1/4" Stereo TRS Output Jack — Open Frame (Switchcraft 12B Style)

Name: Allparts EP-0155-000 1/4" Stereo TRS Output Jack — Open Frame (Switchcraft 12B Style)
Brand: AllParts
SKU: EP-0155-000
Price: 30.00 MYR
Availability: InStock

RM30.00 RM35.00

Shipping calculated at checkout.

In stock

Free Delivery For Purchase Above RM100. T&C Apply.

Same Day Delivery For Melaka Area Is Available

Orders Placed Before 12:00 PM Will Be Dispatched The Same Day

Flexible Payment Plans Available On Purchases Over RM1,000 For MAYBANK Cardholders

✅ 100%
Genuine

🏪 Trusted
Since 1997

🔄 7-Day
Returns

⭐ 5,000+
Customers

Pickup available at 9, Jalan Melaka Raya 14, Taman Melaka Raya, Melaka , Malaysia

Usually ready in 2 hours

🚚 Peninsular Malaysia: 2–5 business days
🚚 Sabah & Sarawak: 5–10 business days
📦 Orders processed within 1 business day
💳 Tracking number provided upon dispatch

✅ 7-day return policy for unused, unopened items
✅ Items must be in original packaging with receipt
✅ Manufacturer warranty applies to all products
📧 Contact us to initiate a return
⚠️ Strings, picks, harmonicas and drumheads are non-returnable once opened

Our products are manufactured both locally and globally. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.

Description

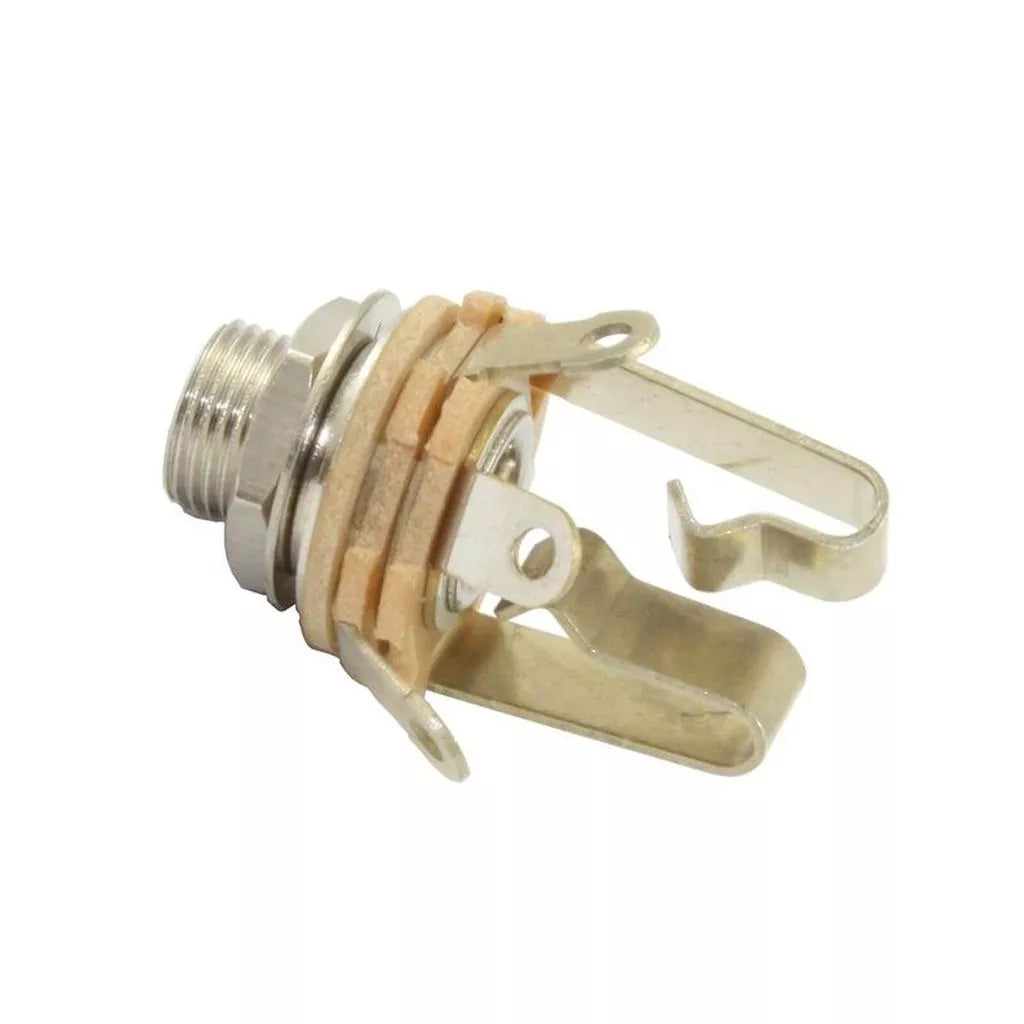

The Allparts EP-0155-000 is a 1/4" stereo TRS (Tip-Ring-Sleeve) output jack in an open-frame (Switchcraft 12B-style) format — designed for electric guitars and basses requiring a stereo output jack, including instruments with active electronics (battery switching), piezo pickup systems, and stereo wiring configurations. Mounts through a 3/8" diameter hole. Threaded portion: 3/8"-32 thread, 1/4" length.

Open Frame vs Barrel Jack — Two Stereo Jack Formats

Stereo TRS output jacks are available in two main physical formats, and the correct choice depends on your guitar's jack routing:

Open frame (Switchcraft 12B style) — EP-0155-000 — a flat, open-body jack that mounts through a standard 3/8" hole in the guitar body or pickguard. The jack body sits inside the cavity with only the threaded barrel protruding through the mounting hole. This is the standard format for most Stratocaster, Telecaster, and similar guitars with a flat pickguard or body-face jack mount.
Long barrel jack — EP-0152-000 — a cylindrical barrel-style jack with an extended threaded barrel, designed for side-mounted jack routing on thicker guitar bodies (Les Paul, SG, etc.). See EP-0152-000 for this format.

Confirm your guitar's jack routing style and mounting hole diameter before ordering.

Stereo TRS — For Active Electronics & Battery Switching

The most common application for a stereo jack on an electric guitar is active electronics with battery switching — the ring contact completes the battery circuit when a cable is plugged in, automatically disconnecting the battery when unplugged to preserve battery life. Other applications include stereo pickup wiring and piezo/magnetic blend systems. If your guitar has active pickups or an active preamp, a stereo jack is almost certainly required.

Specifications

Model: EP-0155-000
Type: 1/4" Stereo TRS (Tip-Ring-Sleeve), Open Frame
Style: Switchcraft 12B-style
Mounting Hole: 3/8" diameter
Thread: 3/8"-32
Threaded Portion Length: 1/4"
Long Barrel Stereo Alternative: EP-0152-000 (for side-mounted barrel jack routing)
Mono Open Frame Alternative: EP-0055-000 (Switchcraft mono jack)
